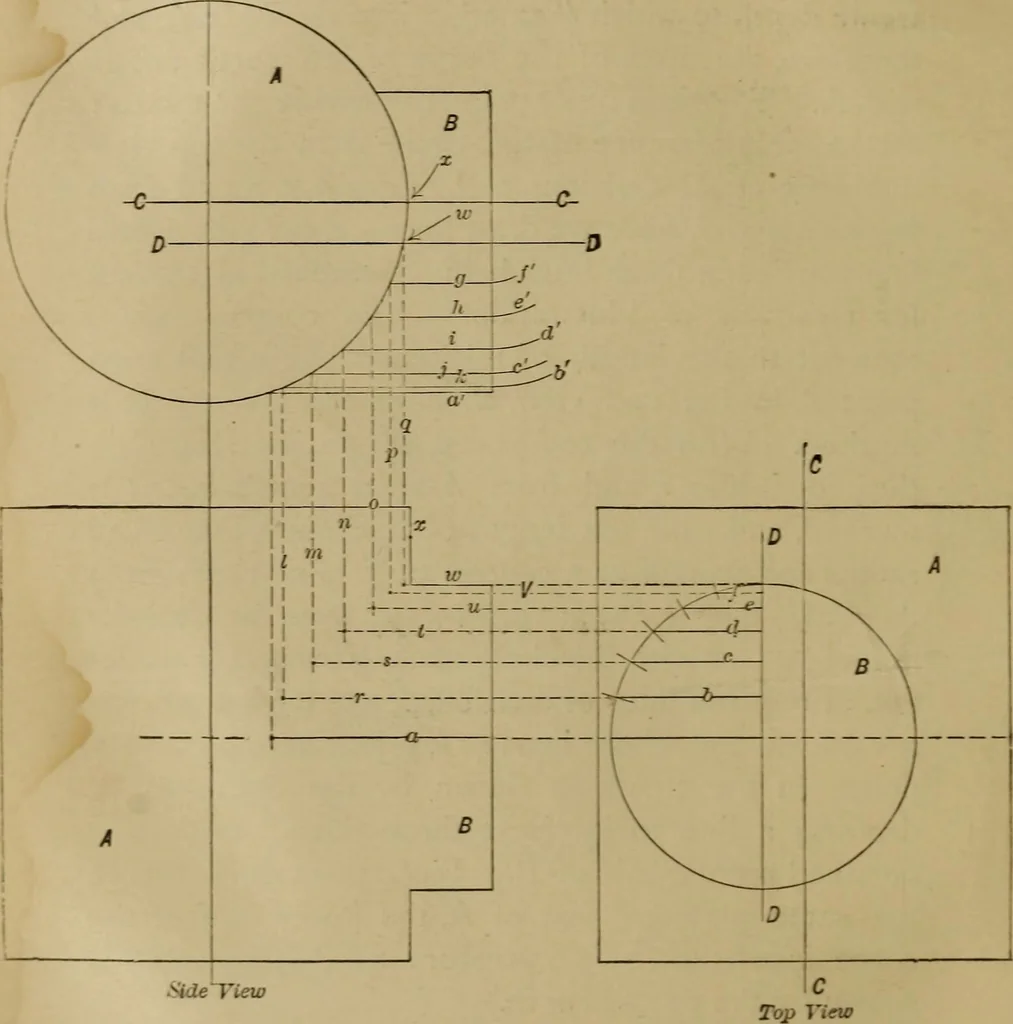

B. Since the axis of B is inthe same plane as that of A, the lower half of thecurve is of the same curvature as the upper, as isshown by the dotted curve, • In Figure 228 the axis of piece B is not in the sameplane as that of D, but to one side of it to the dis-tance between the centre lines C, D,… … ■^ide^Yiew Fig. 22S. end view, passes within the line x before the curve ofintersection begins, and in transferring the lengths of PROJECTIONS. IS: the full lines b, c, dy e, f, to the end view, and mark-ing the arcs b\ d, d, e?, f they are marked from thepoint w (the point where the centre line of…
