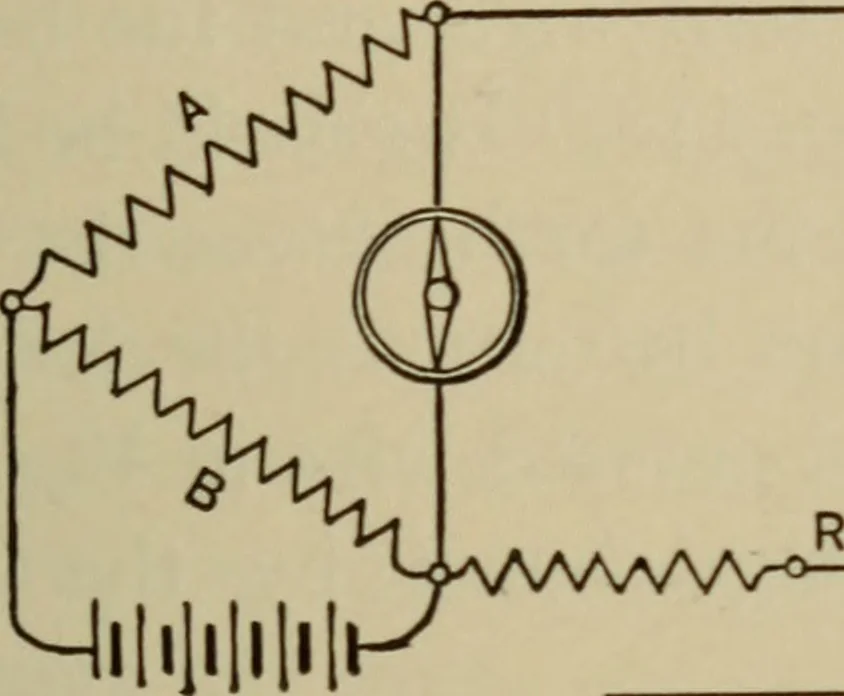

insure a proper battery strength. If dynamocurrent be used, a reducing rheostat should invari-ably be placed in circuit and sufficient resistanceshould be cut in as to obviate any danger of over-heating the coils of the bridge. It is sometimes TESTING TELEGRAPH WIRES AND CABLES. 199 advisable to… … Fig. 111.
