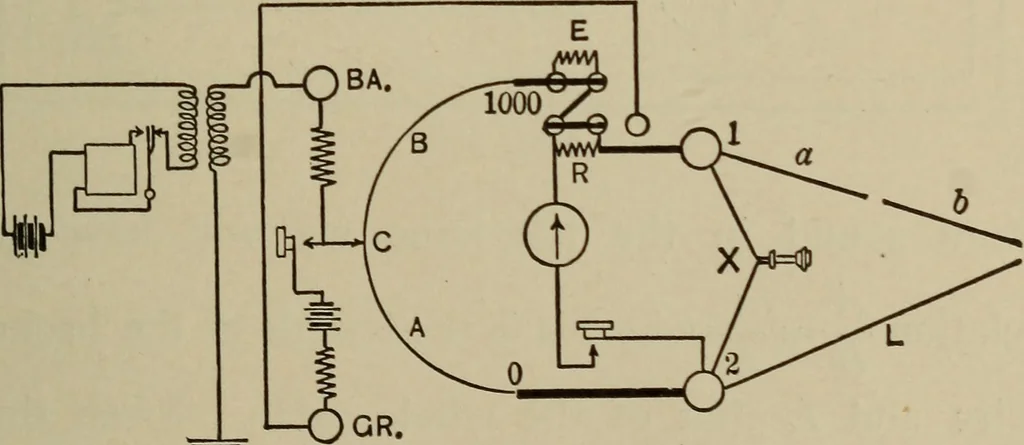

Fig. 131. The resistance a to the fault from the binding-post B.L — 100A t1 is a = , where L equals the total re-sistance of the loop, A equals the reading of contactC, and£=: 1000 — A. … Fig. 132.To Locate Opens, Using Buzzer and Telephone, 228 ELECTRICAL INSTRUMENTS. In this case the slide resistance circle A B is usedwithout either of the resistances E or R. Connectto binding-post 1 the broken wire and to binding-post 2 a perfect wire having the same capacity permile. Connect…
