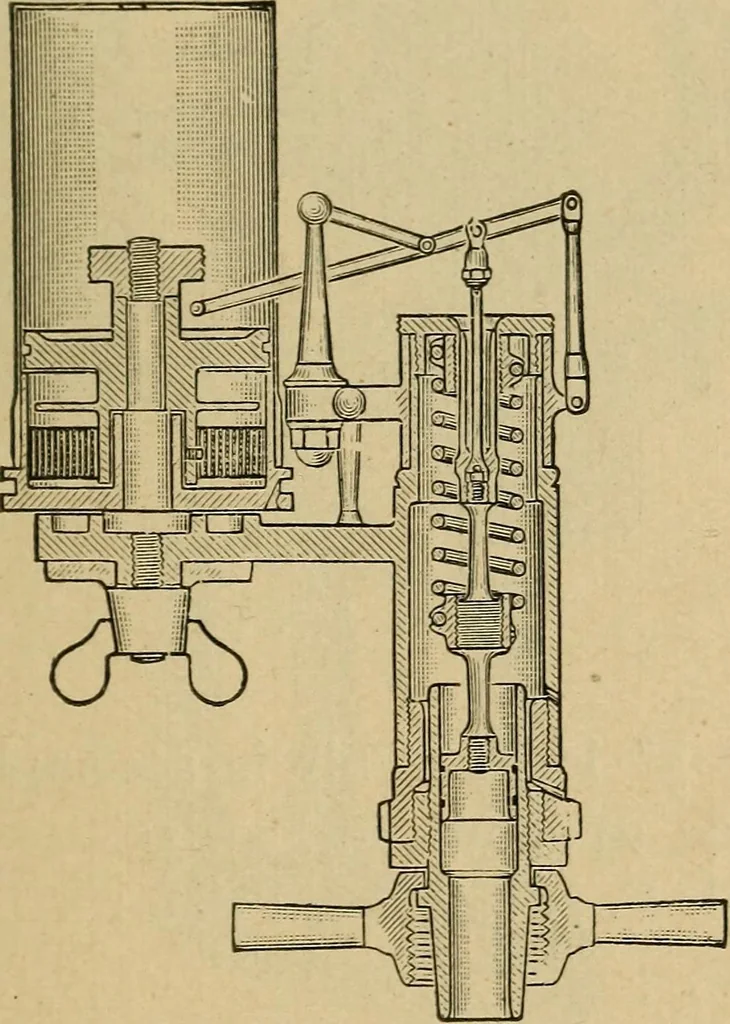

ter-ing the load on the brake. Various kinds of dynamometer brakes areused fortesting; that shown in Fig. 33 is considered by thewriter as being satisfactory. The brake should beattached as shown in the illustration, the load beingtaken as the number of pounds shown on the upper TESTING ENGINES. 65… … Fig. 34- The circumference of the wheel should be measuredat the centre of the rope, thus allowing for half therope thickness. Indicators.—Fig. 34 shows the American Thomp-son Improved Indicator with J area piston. 66 OIL ENGINES. The indicator is attached to the cylinder by firstscrewing into the…
