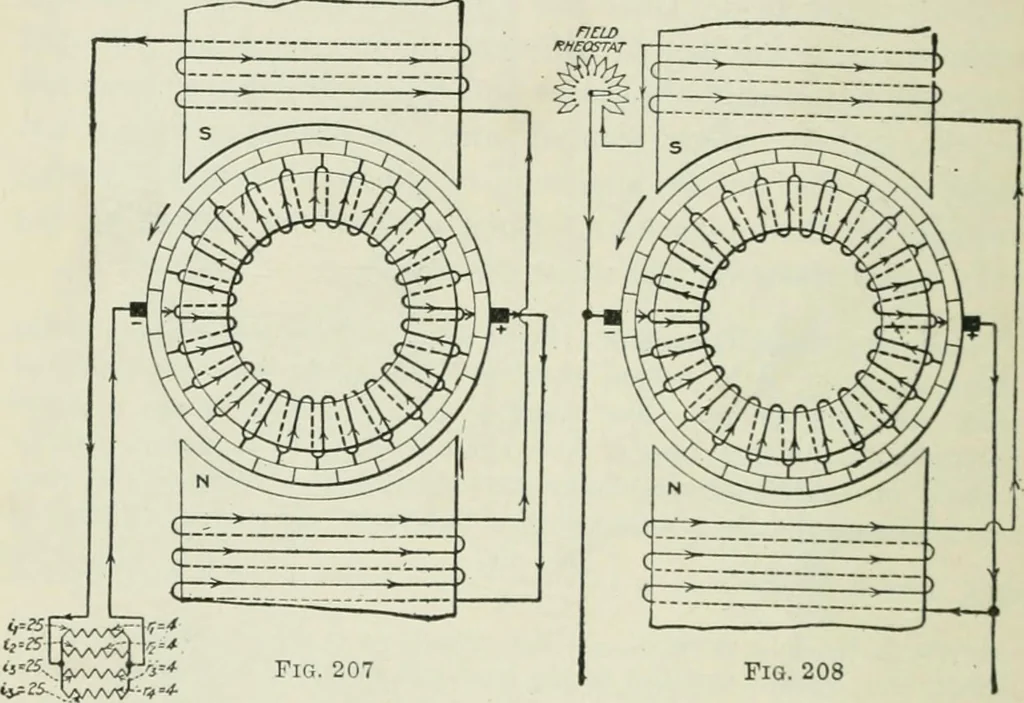

LECTRICAL MACHINERY the load was taken off and if the voltage at the armature ter-minals remained constant at 100 volts, as was assumed in theshunt machine, 25 amperes would flow through each of thethree resistance elements, as in Fig. 206. But with the seriesmachine the pressure will decrease… … Fig. 207.—Series generator connected to a multiple load.Fig. 208.—Rheostat in licld circuit of shunt generator. decreased on the series machine the voltage is decreased andthe current through each individual load also decreases;whereas, on the shuni generator the total load may he varied,but the…
