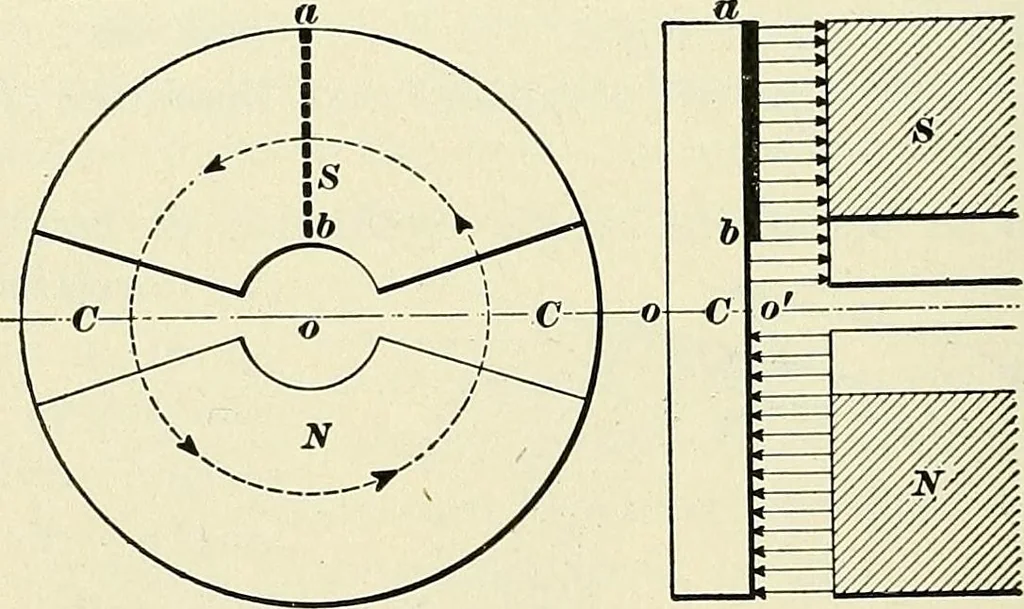

t is composed. The laminated structure is, there-fore, most extensively used. 3055. As in the case mentioned in Art. 3042, thedirection of the length of the conductor may be radialinstead of parallel to the axis of rotation. In that casethe cylindrical core would take the form of a disk, and… … Fig. 1140. The curve of the E. M. F. generated under these circum-stances would be similar to that mentioned in Art. 3049,i. e., similar to a sine curve, but with flatter peaks to thewaves. From an inspection of the figure, it will be seen that if thecore were made up of disks arranged at right…
