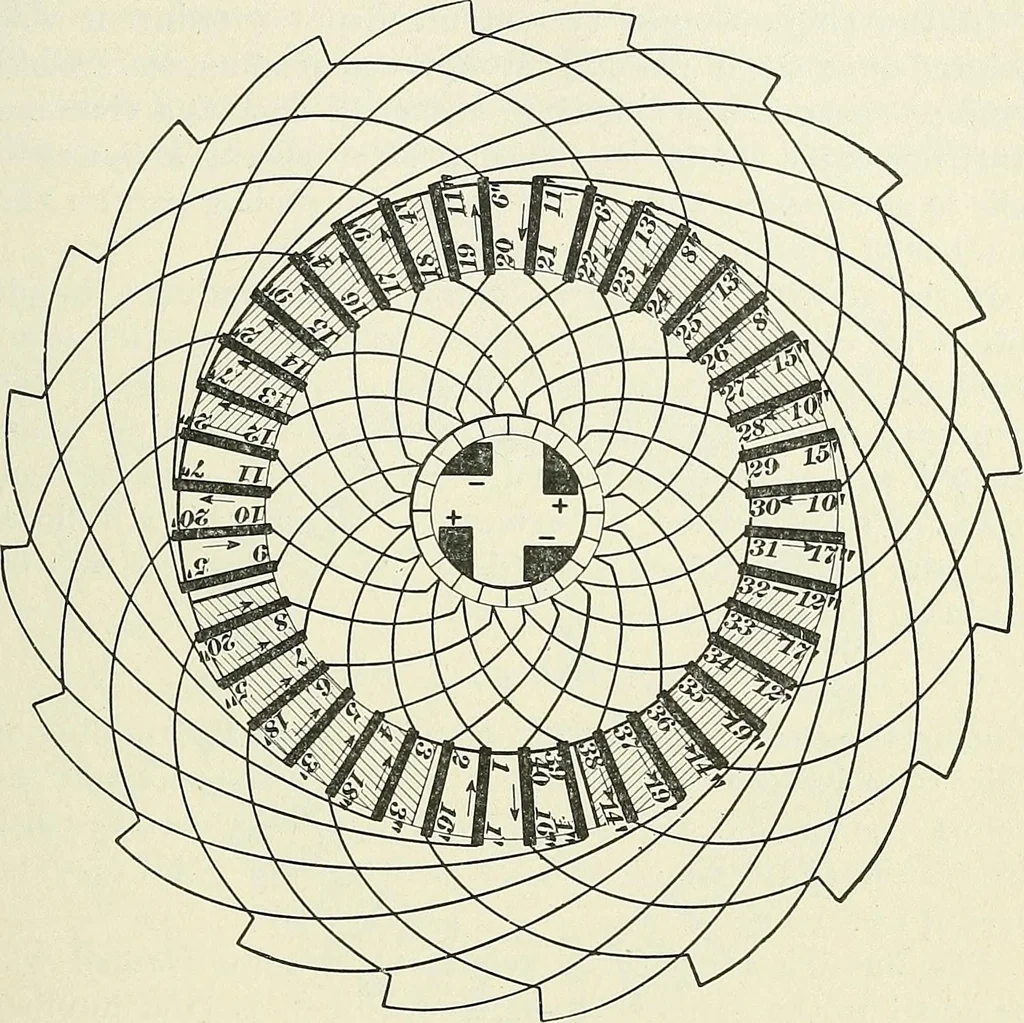

y (20) being a multiple of in (2), this gives two separate reentrant systems.A single conductor is represented in each winding space,numbered i, 2, 3, etc.; the order in which the conductorsmaking up the first of the two windings are connected isindicated by the numbers i, 2 , 3, etc., and the… … Fig. 1181. 2, 9, 12, 19, 22, 29, 32, and 89 are indicated by the absenceof the arrow-heads, which on the rest of the conductorsindicate the direction of the current in them. MULTIPLE-TV^OUIVD TTI^O-CIRCUIT DRUM WINDINGS. 3181. The principles and formulas given for two-cir-cuit single-wound drum…
