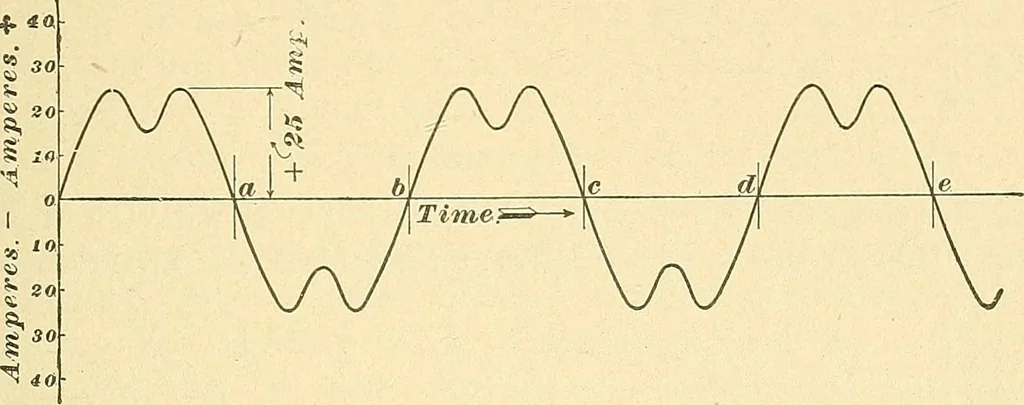

the E. M. F. which is setting up thecurrent. The positive half wave Off a is of almost exactly CURRENT APPARATUS. 2561 the same shape as the negative half wave a gg b in mostpractical cases. Induction-coils produce E. M. F.s whichhave different positive and negative half waves, but in thecase of E.… … Fig. 1434. the shape of the wave depending largely upon the construc-tion of the alternator producing it. Some of the more com-mon shapes met with are shown in Figs. 1434, 1435, 1436, and1437. Figs. 1434, 1435, and 1436 show the general shape ofthe waves produced by some alternators used largely for
