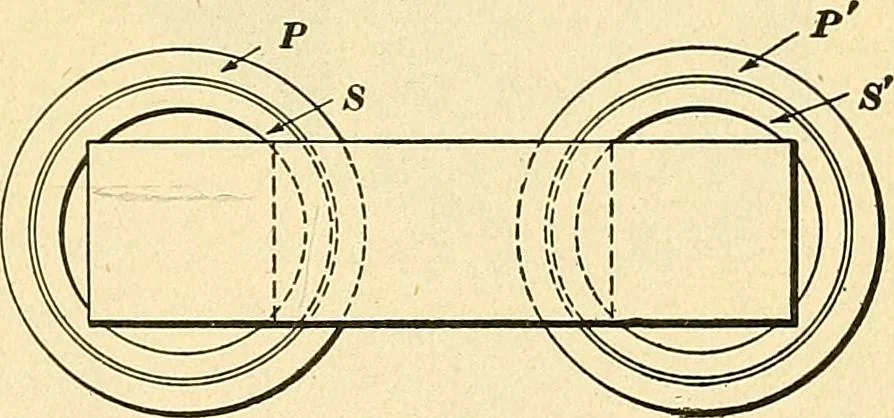

thin ironstrips into the rectangu-lar form shown; P, P\S, S are the primaryand secondary coils,each wound in twoparts. It will be no-ticed that the primary is wound over the second- fig. 1548. ary, thus making the leakage path between the coils longand of small cross-[:ection, thereby reducing the…
Electrical engineering
