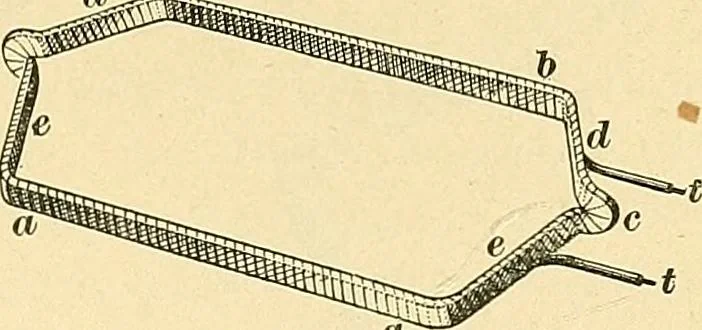

lies (t.-^J in a lower plane than b b, so «^that the upper and lower endconnections do not interferewith each other. The termi-nals t, t of the coil are usually ^brought out at the points fig. igos.shown. At the points r, c the coil is so formed as to bringthe end connections d^ d into a plane… … 4109. Bar windings are frequently made in two layers.Fig. 1609 shows a form of bar suitable for a winding such as that shown in Fig. 1594. Fig. 1609. The straight part a alies in the slot, and theend portions b, b formthe connections to the other bar. Fig. 1610 shows oneelement or turn of such a…
