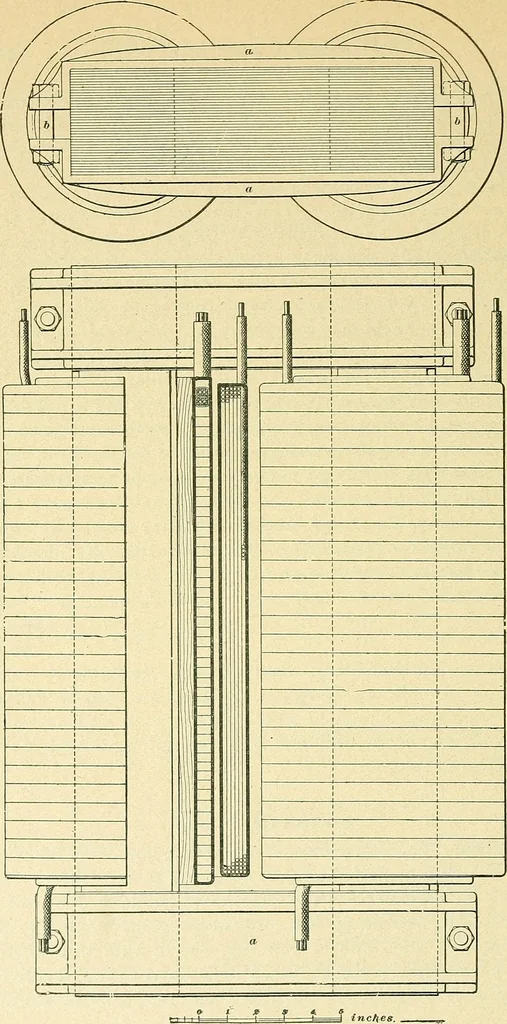

2 volts,or 2% of the output, which is close enough regulation for allpractical purposes. CONSTRUCTION. 4236. The construction and arrangement of the coreand coils will be understood by referring to Fig. 1674. Thisshows an elevation of the assembled transformer with alongitudinal section of the… … Fig. 1674. CURRENT APPARATUS. 3867 shown held in position by clamps «, drawn up by bolts ^,though some makers use bolts passing through the plates atthe corners. It is best, however, to avoid bolts passing throughthe core if possible. The terminals of the coils should bevery heavily insulated, and…
