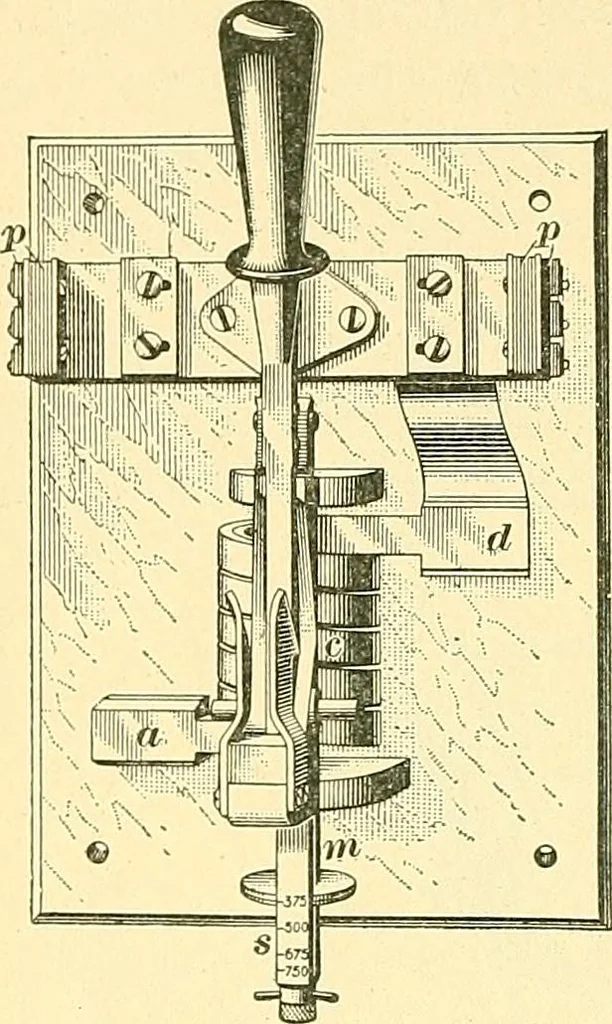

ried by adjusting the position of the plunger inthe coil, the current for which it is set being indicated bythe scale s, Fig. 29. The switchboard, Fig. 56, is equippedwith a circuit-breaker for each dynamo and each feeder.The board shown in Fig. 58 is equipped with a circuit-breaker for each… … Fig. 29. 24. Fig. 30 (a) and (I?) shows another type of circuit-breaker, which is designed for use on 125- to 250-volt direct-current circuits. One of the principal features of thisbreaker is the style of main contact used. It consists of a §17 ELECTRIC LIGHTING. 29 U-shaped brush a made of a large…
