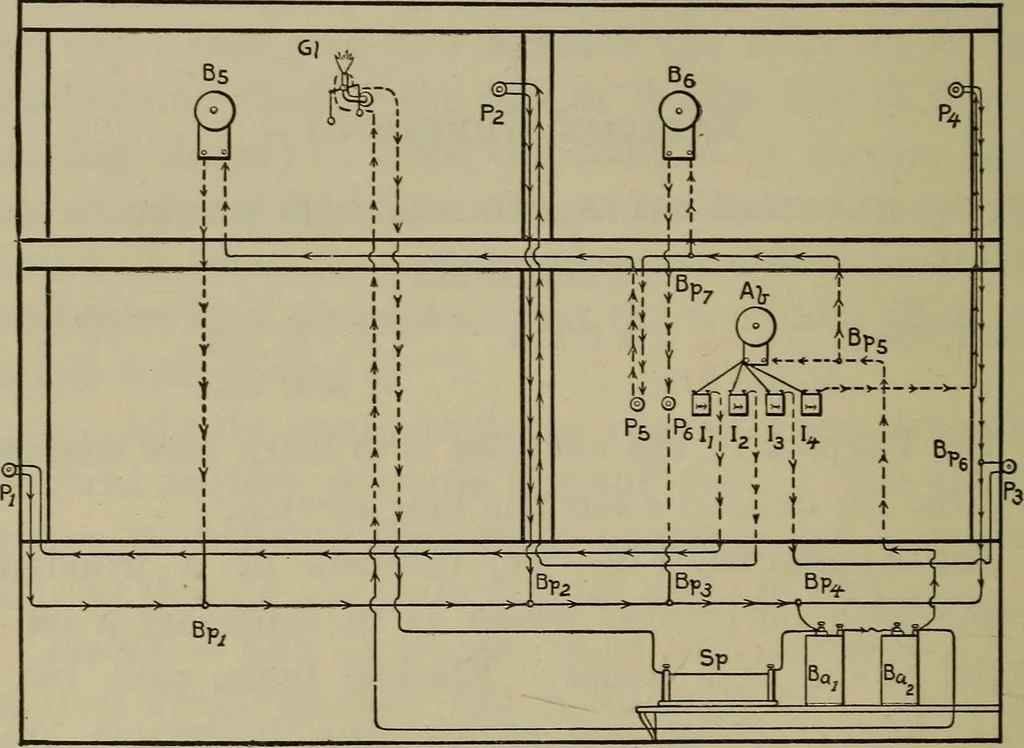

ed and covered with insulatingtape. Operations.—| a | Remove the covers from a belland a push button, and make a clear diagram ofeach. By reference to these diagrams, explain the 136 LABORATORY EXERCISES IN PHYSICS action. The diagrams should be lettered, and thepaths of the current clearly shown… … Fig. 29. (c) With white wires, connect the other post ofthe bell through the indicator I with one side of theFront Door Fush Button Pv Also connect theother side of I\ by the long, red return wire withthe zinc of B a±. (d) Diagram the arrangement, tracing out thecircuit with arrows; then press the…
