International Library of Technology · Scranton, International Textbook Co. · leaf 580

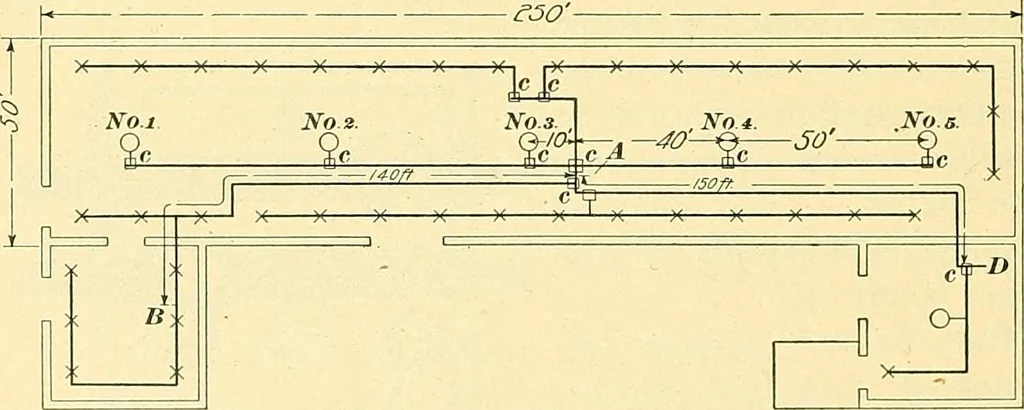

sthus protected from injury and is more likely to melt at itsrated capacity. One type of enclosed fuse block is shown inFig. 44, WIRING FOR A UNIFORM DROP. 74. In the method of wiring illustrated in Fig. 20, itwill be noticed that the lamp on the extreme end of the linein the office is much farther… … fig. 4i. wiring on which the lamps will all glow with equal bright-ness. Also, it is not desirable in many cases to have arosette with a fuse at each lamp, as this means many smallfuses. Many very small fuses are not as reliable as a fewlarger ones and they cause more trouble. We will, there-fore,…
Electrical engineering
Internet Archive · Boston Library Consortium · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Electric engineering.], 1902, leaf 580](https://img.insideoutlibrary.com/img/1024/ia-electricengineer03inte-580-355.webp)
![An illustration from [Electric engineering.] (1902)](https://img.insideoutlibrary.com/img/200/ia-electricengineer02inte-275-147.webp)
