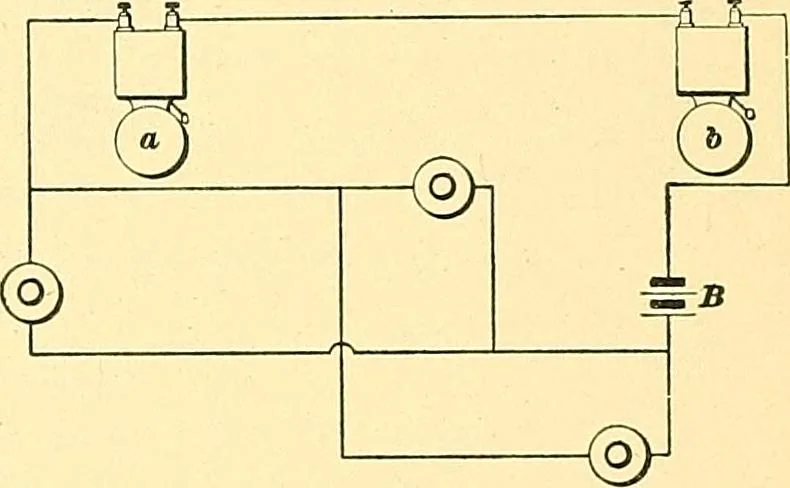

lied than when they are in series, becausethe total current subdivides among all the bells. This callsfor a large battery and large wires. When the branchcircuit containing one bell is very much longer, and henceof higher resistance than the branch containing anotherbell, the current will not… … Fig. 17. 28 INTERIOR WIRING. 35 47. Wiring: for Three Bells and Three Push But-tons.—Fig-. IS shows a plan of wiring that is often used for Front Door Be// Q Bear Door Be//. Buzzer rs^i FronfDoorPush© <3>- Dm/no ffoomPus.h RearDoorPush Fig. IS. the bell system in a small dwelling where no…Electrical engineering
