Gregg, J. B. [from old catalog] · Ada, Ohio, The University herald press · leaf 119

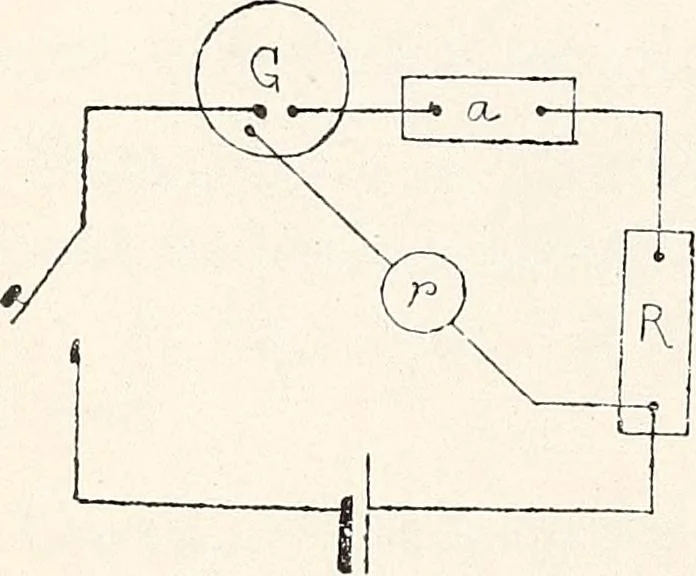

The re-sistance may need to be placed inthe circuit with r. Then place R andrin circuit, and adjust R so that nodeflection will occur when contact ismade. Data.— 1. (1.) R/,, the resistance through the box necessary to keep the deflection constant; (2.) 0, the object whose resistance is measured;… … R, Resistance Box. r, Resistance to be measured. G, Differential Galvanometer. 110 RES/STANCE. EXPERIMENT 52. RESISTANCE IN PARALLEL CIRCUIT. Method.—Make the following connections with the slidewire bridge: (1.) a battery to the sliding contact and thecenter binding post on the short copper strip;…
Physics
