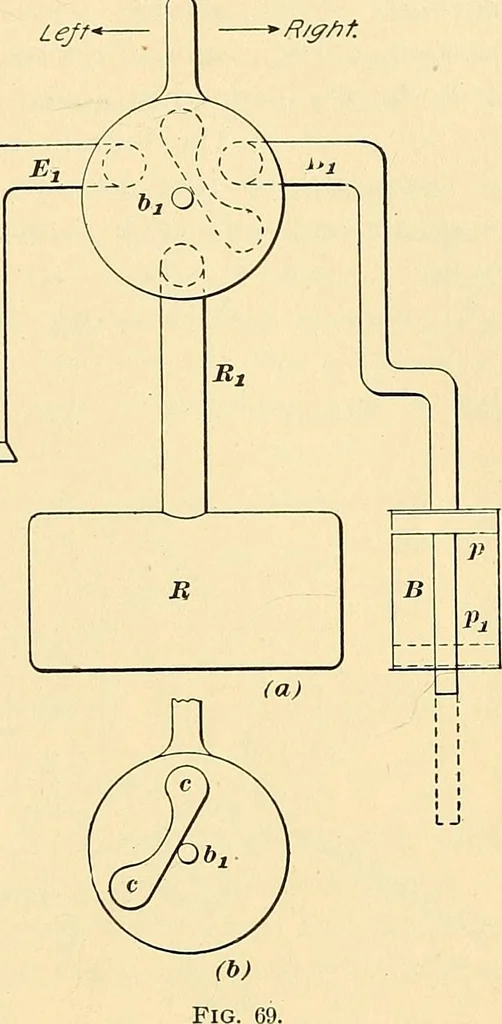

cal position, all the ports are againblocked and the air in the brake cylinder must remainthere and keep the brakes set. By moving the valve handleto the left, ports B^ and E^ are connected, thereby allowingthe air in the brake cylinder to escape to the atmosphereand permitting the release springs… … /. IV.—S3 56 ELECTRIC RAILWAYS. 25 73. Positions.—Fig. 70 is a top view of the Christensenvalve as it appears on a car. The dotted circles indicatethe exhaust, reservoir, and brake-cylinder connections, asmarked. There are five positions—namely, lap, service stop,emergency stop, slozv release and…
