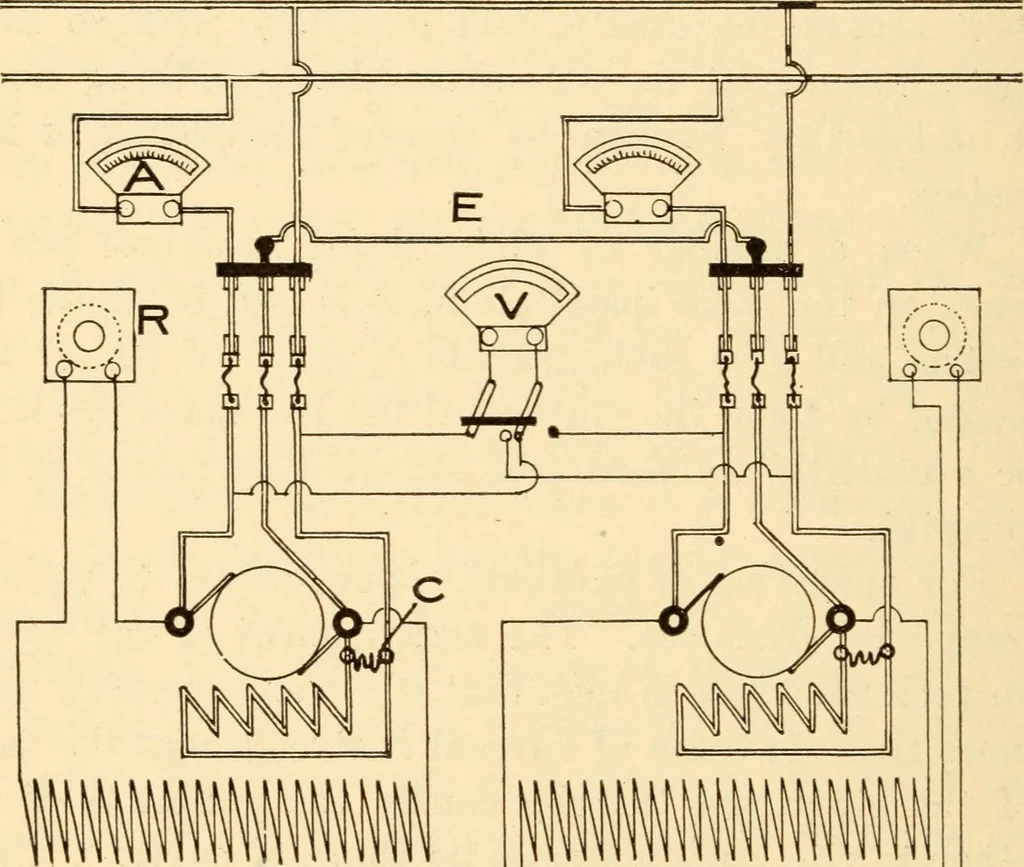

e refer toFigure 77, which shows the machine and switchboardconnections of two such machines. It is essential tosee that the ammeters A are cut in, as shown in the 114 Operating and Testing diagram. If they are cut into the same side as thecompound winding, the indications will be very unre-liable,… … ■■ ■fwili Figure 77 wire E should be of ample size, the lower the resist-ance of this wire the closer will be the regulation ofthe two machines. The main switches of the dynamosshould be so arranged that the equalizer will be con-nected slightly before the other two wires are and onno account…
