Electricians' operating and testing manual; (1910)
Horstmann, Henry C. [from old catalog], Tousley, Victor Hugo, 1875- [from old catalog] joint author · Chicago, F. H. Drake & co · leaf 89

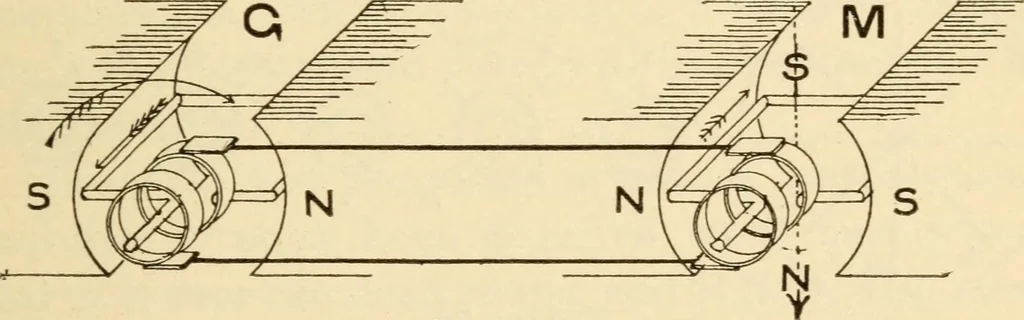

l alternating current generators wererun, one as a generator supplying current to the otheras a motor, the one running as a motor would run inexact synchronism and at exactly the same speed asthe one running as a generator, for every change inthe force producing power in the generator would… … Figure 58 connected to two collector rings, as shown in Figure58. The fields of both the generator and the motormust be supplied by direct current from some outsidesource. If the armature of the generator G is re-volved to the right, as indicated by the arrow, currentwould be induced in the moving…
