Metal-work; a handbook for teachers and students (1914)
Adam, Hugh M. [from old catalog], Evans, James Humphrey, [from old catalog] joint author · New York, Longmans, Green and co.; London, E. Arnold · leaf 270

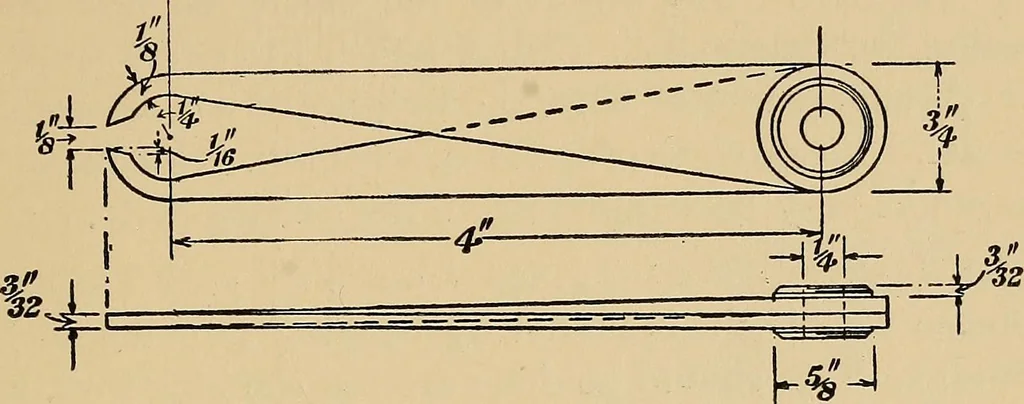

Model 6—Callipers : Mild-Steel.—Cut out two strips ofmetal large enough to make the two legs of the model; thencarefully mark out the shape on one strip, drill the rivet holein both, and temporarily rivet the strips together, making surethat the marking is on the outside. Remove the waste metal… … Model 6. piece. Obtain two bright washers and a short length ofromid steel to form the rivet; assemble the parts, noting thatthe calliper points are placed correctly, then lightly rivet themodel together. Note.—Owing to the extreme difficulty and time required,it is not usual for pupils to make…
Metal-work
