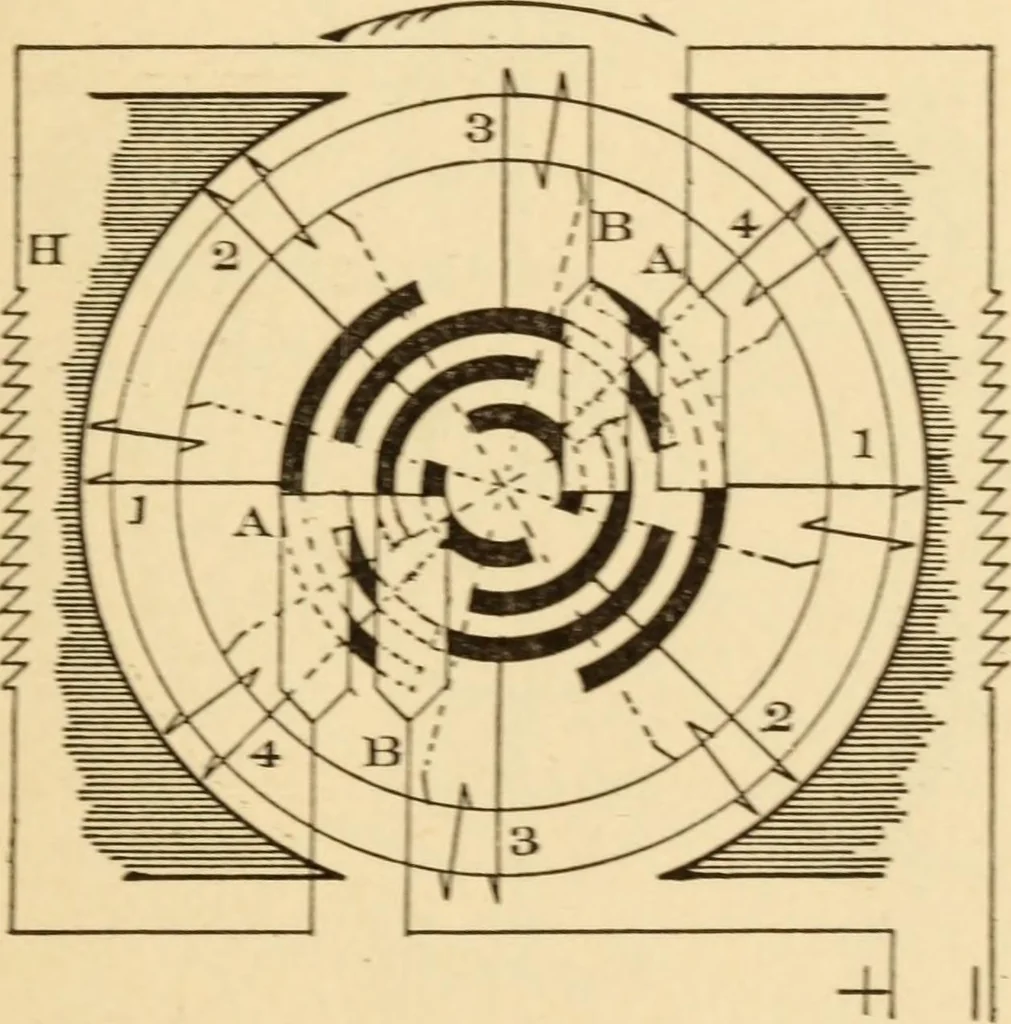

ve commutator section. Types of Dyn-amos 61 By tracing out the circuit from the binish A, it willbe seen that current enters at this brush, passesthrough coil 1-1 to brush A^ : thence to field H, brushB. coils 2 and 4 in parallel, thence to brush B^ and outat the positive pole of the d^Tiamo. With… … Figure 42 As the different coils are not in series with eachother but at times in parallel the brushes must be soarranged that at no time can a coil that is not gen-erating be left in circuit. Such a coil would simplyform a shon circuit to the line and much of the cur-rent that should flow through…
