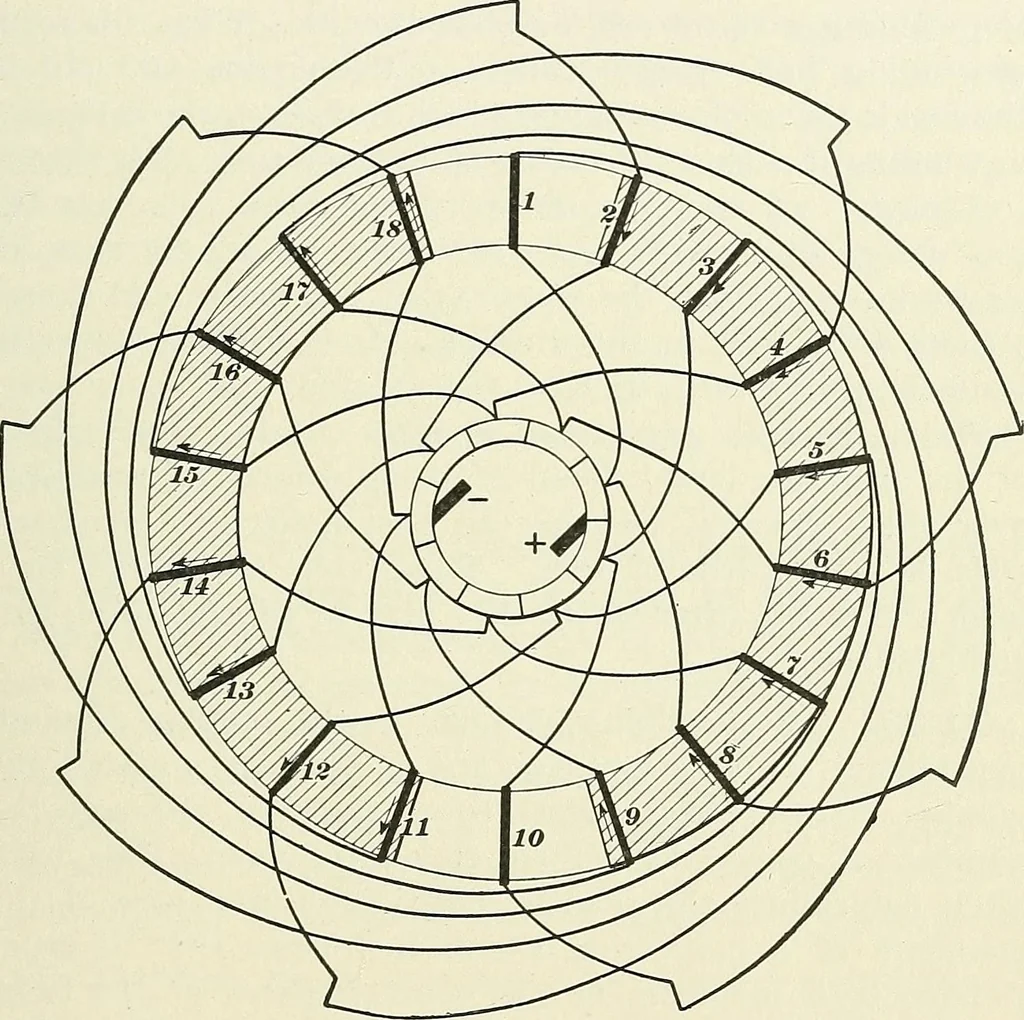

gs. 3141. It will be seen from this diagram (in which the16 conductors are evenly distributed on the surface of the APPLIED ELECTRICITY. 1985 armature) that the conductors of each of the short-circuitedcoils 1-8 and 9-16 do not He in the same part of each neu-tral space, because they are not… … FlG. 1169. cal winding. With an odd number of coils, however, oppo-site conductors may be connected together, as illustrated inFig. 1169, which shows a winding with 9 coils, i. e., 18 con-ductors. In this winding the back pitch is 9 and the front— 7. In the position shown, the coil formed of…
