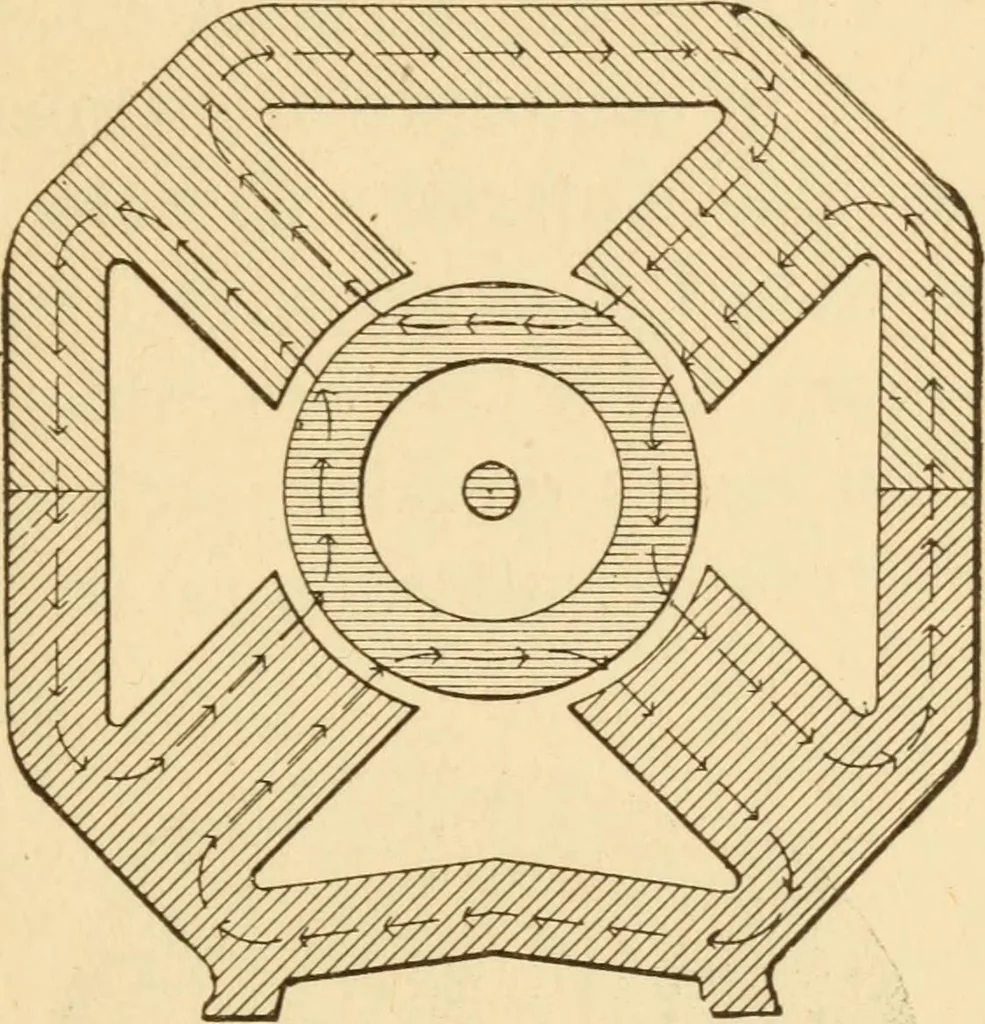

be about midway be-tween two pole pieces. If the brushes are moved aquarter revolution forward or back the directions ofcurrent will be reversed. Armatures for such ma-chines may be wound just as for bi-polar fields but aform of winding as indicated in Figure 50 is prefer-able. Types of Dynamos 67… … Figure 49 in two and the wires laid out flat. W, W representsthe commutator sections and N, S, the poles as inFigure 49.
