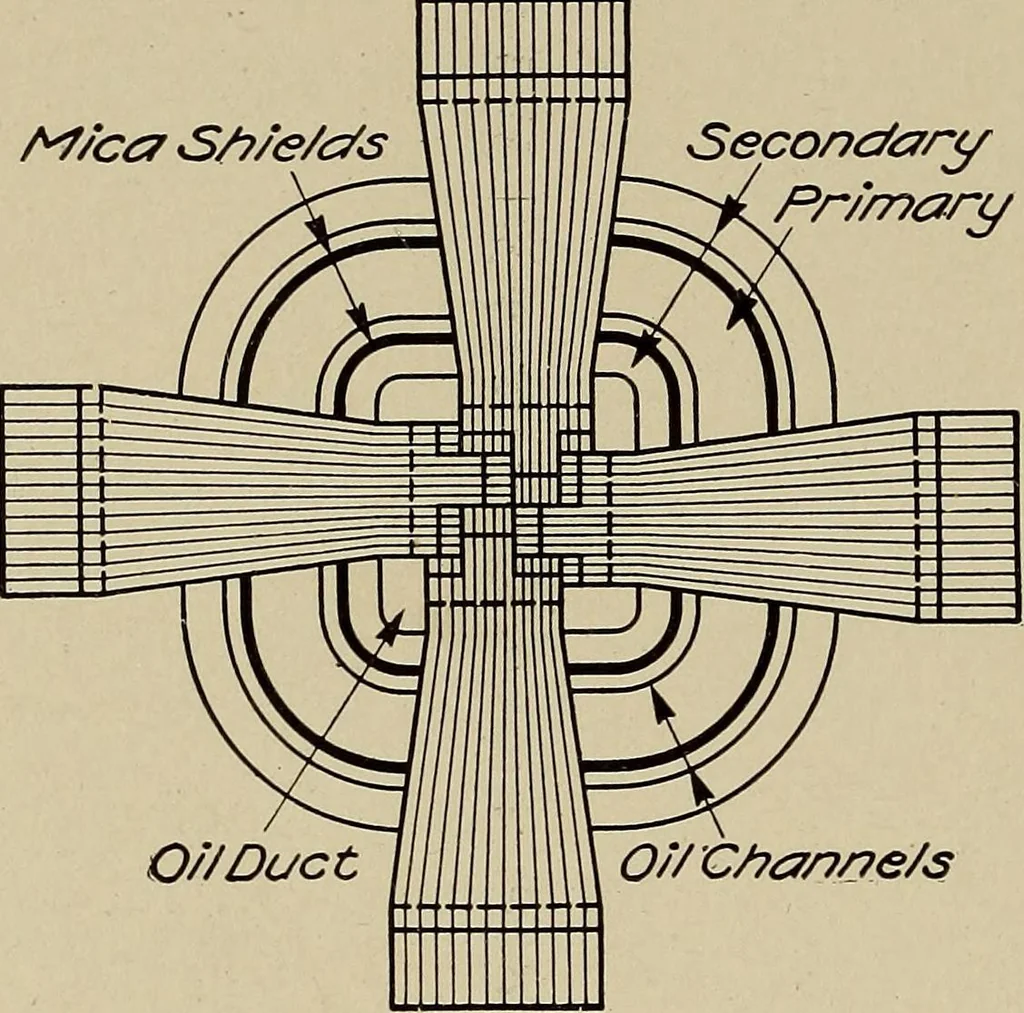

288 EXPERIMENTAL ELECTRICITY There is one other loss which has not been discussed,namely, the leakage of flux in the transformer. This depends upon the de-sign of the transformer.M/CC7S/7/e/c/s WllllllKl/l/ Seconc/c7ry In some cases, where Fr/marc/ the primary and second-ary windings are… … O//Duct O//C/van/ye/s Fig. 370. — Cross section of Fig. 369. shows a subway transformer, andFig. 369 shows a modern shell typetransformer. Experiment 157. Connect the secondarywinding of a constant potential transformer toa suitable source of potential, say the low ten-sion side of a I kw. TypeH-G.…
