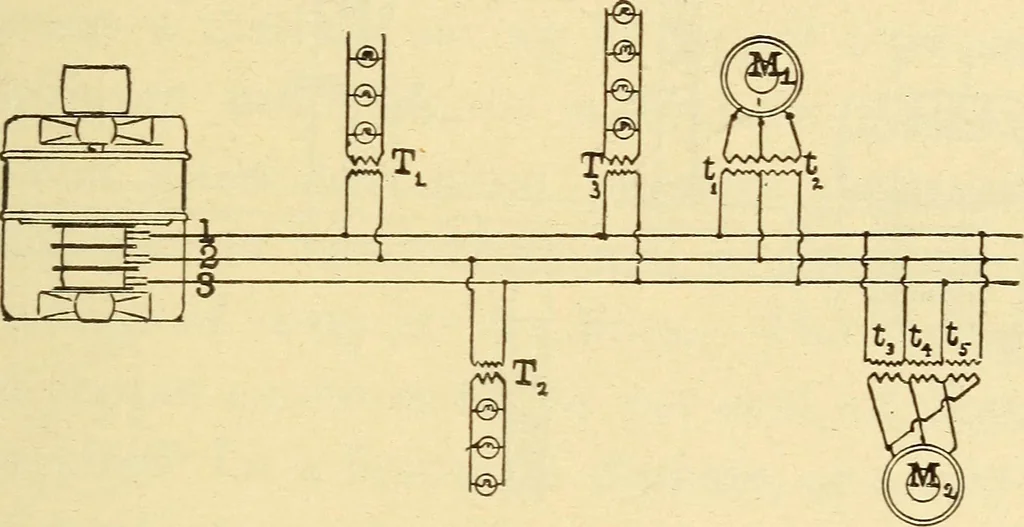

buting circuit of a triphaser.Here any pair of conductors may be re-garded as an independent Uniphase circuit,from which step-down transformers forUniphase work may be operated. Thus^, T^ and T^ are step-down transformers,each connected with one pair of high-pres- THE TRAIS-SMISSION OF POWER. 281… … Fig. 74.—Coxxectioxs of Triphase System. E. M. Fs. and currents suitable for operat-ing a triphase alternating-current motorJ/i, but thi*ee transformers may also beemployed, each connected across a pair ofhigh-pressure wires as shown at 4, t^ and^5. Their secondary circuits are connected 282 THE…
