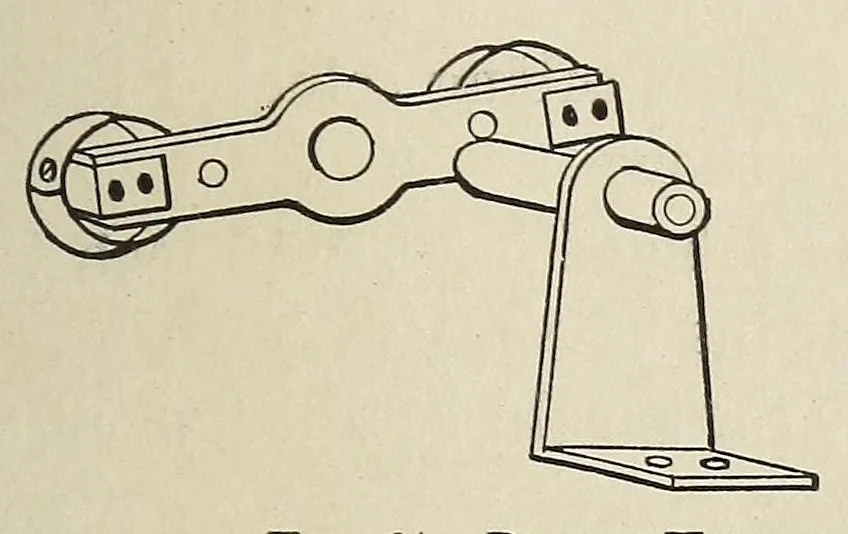

SIMPLE ELECTRIC LOCOMOTIVE MOTOR. 153 to insulate the brushes from the bearing. At each end is riveted, or screwed, an angle piece of brass to which the ring brushes are attached. The hole in the center of the brush holder is drilled of a sufficient size to fit over the tube forming the bearing.… … Fig. 64. Brush Holder Details. sions of the lever is drilled a hole which corresponds to holes drilled and tapped in the fiber piece of the rocker arm. When these parts are in position on the bearing and the screws inserted, they clamp the rocker arm and lever against the flat part of the bearing…
