Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 86

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 86

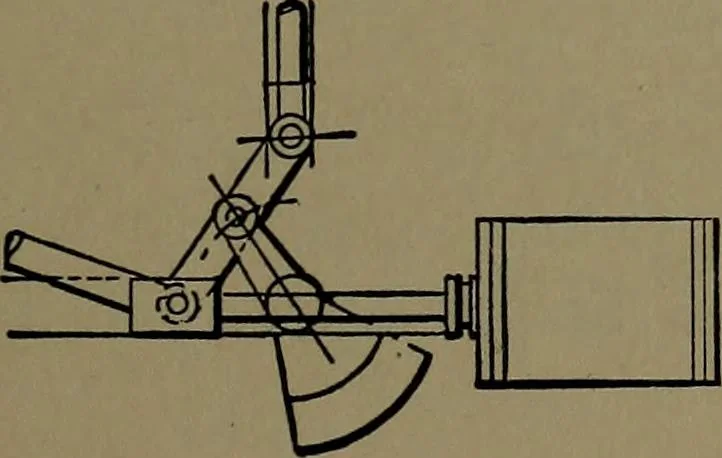

275. PARALLEL MOTION, for a sidelever marine engine. a and b are of equal length.c and d are of equal length. Radius of rocker-shaft crank F = — e … 276. PARALLEL MOTION and com-pensation weight for steam engines, For-neys patent. The link from the cross-head traverses the slot at right angles tothe engine centre, and is pivoted at itscentre to the swinging link and weight.
