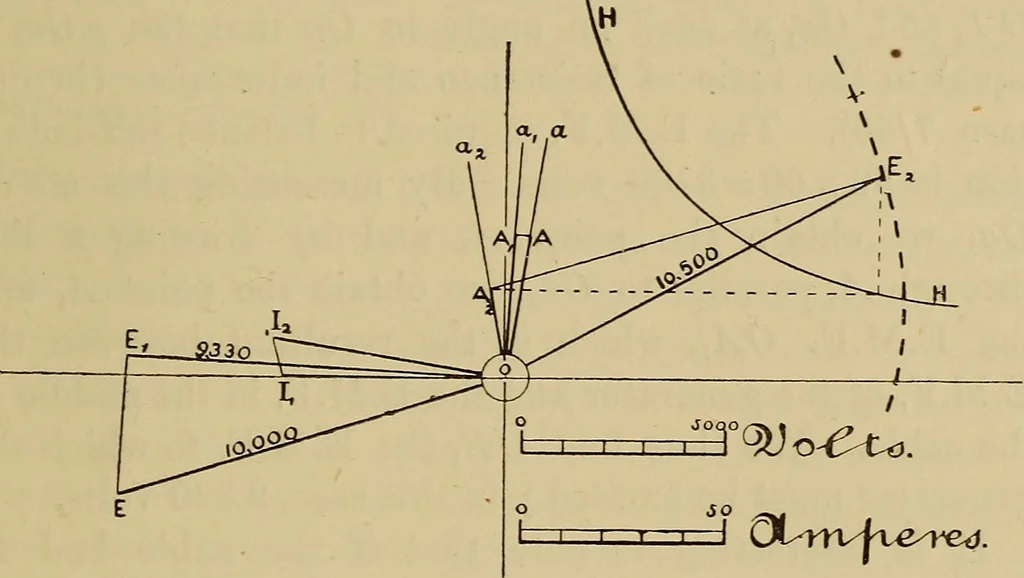

lanation given a few pages back. CAPACITY OF LINE. 285 Let, in Fig. 99, hh represent the hyperbola for 500Kwt., and let 0^2 be the line of resultant E.M.F. (seealso Fig. 90), then, by the construction explained onp. 260, we can find various positions of the E.M.F. radiusof the motor, corresponding… … i d-YYv^e-^rei). Say that in order to get a reasonable margin of power weselect the point JE^t corresponding with such an excitationas to produce 10,500 volts in the motor. From ^2 ^^drop a vertical to the hyperbola, and from its point ofintersection we draw a horizontal to the left till it cuts0«2…
