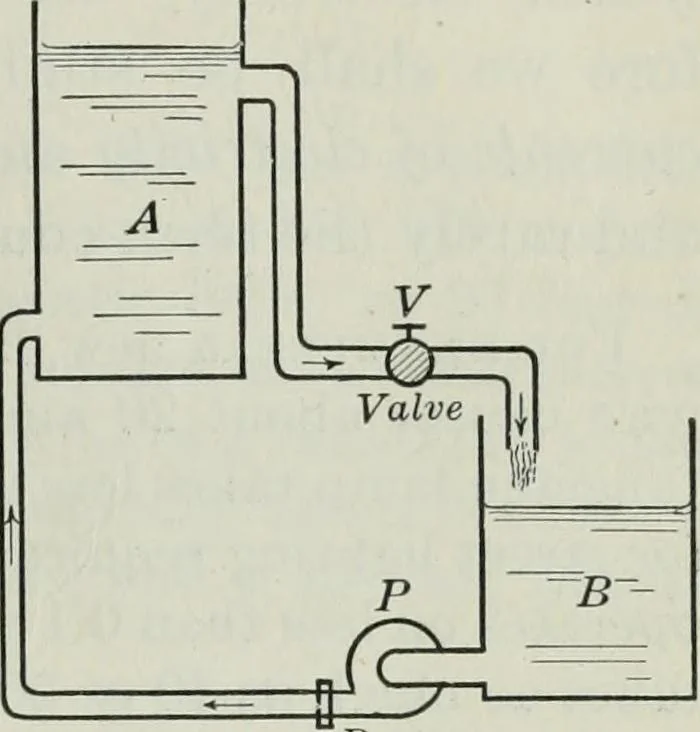

adingfrom the bottom of one to the bottom of the other. If thetanks are partly full of water and the pump is started, waterwill be drawn from one tank B and sent into the other one A,thus raising the water level in the latter. If an overflow pipeis carried from the one tank to the other, the… … Fig. Pump 4. — Hydraulic analogyof a voltaic cell. This is similar to the conditions in an electric cell when thepositive and negative terminals are connected by a wire, asillustrated in figure 2. Now, if the overflow pipe is closedby a valve V, the pump will soonempty the tank B, after which it…
