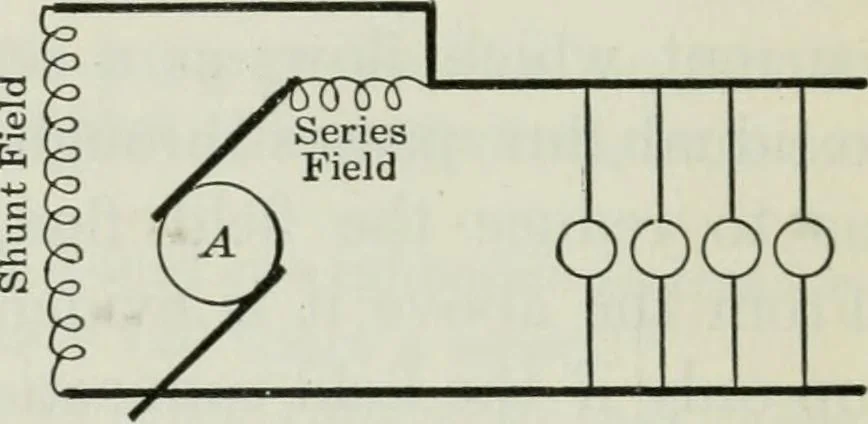

(a) Short Shunt (&) Long Shunt Fig. 146. — Diagrams of compound-wound generators, (a) short shunt,(b) long shunt. in each, if the armatures are alike and the same voltage is tobe produced. Since the series winding carries a large current,the number of times the current must pass around the…
