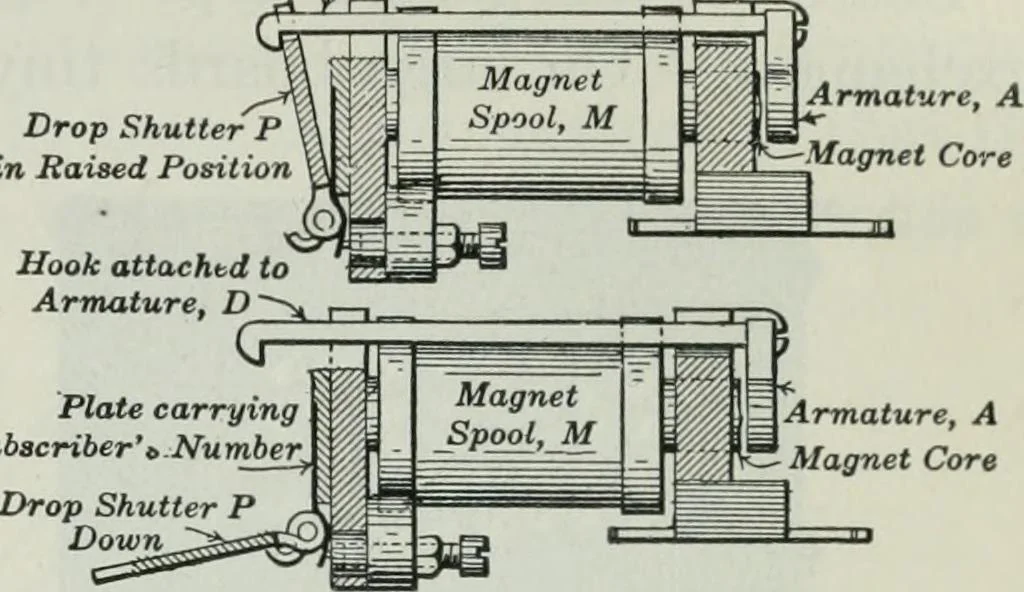

rlier and the simpler forms of telephone switch-boards still used for small exchanges, the subscribers wireson entering the exchange are each connected to a switchboardcircuit which contains a spring jack and an electromagnet,which controls a drop or shutter. The circuit terminates at aground… … Plate carryingSubscriber». Number Fig. 383. — Electromagnet and shutter fortelephone switchboard. is illustrated in figure 383. The armature A of the electromag-net M has a hook D, which ordinarily supports the shutteror drop P, which ishinged at the bottomin a vertical position.When the…
