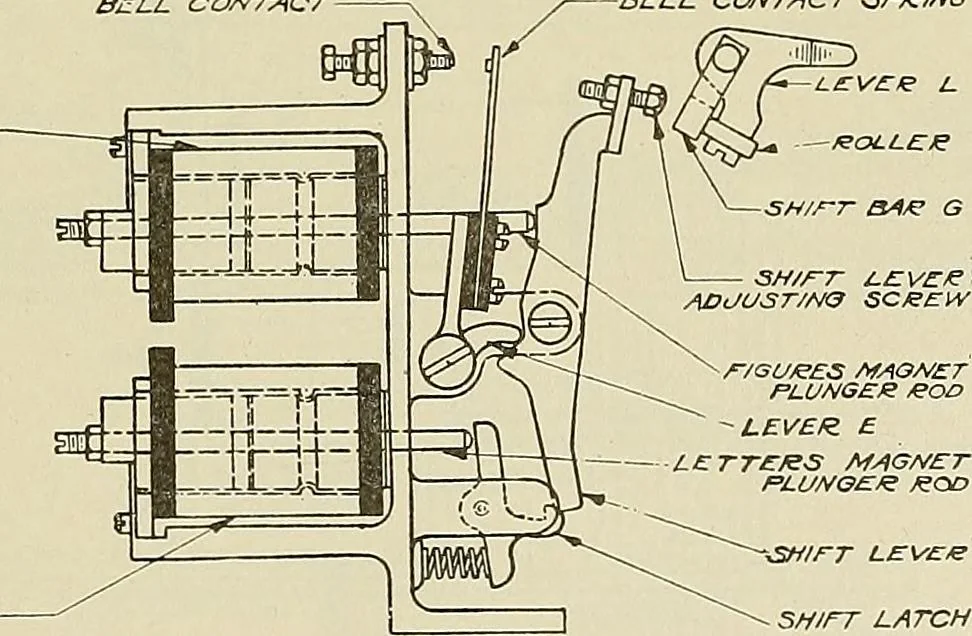

til it does not move the shift lever farenough for it to be engaged by the shift latch when the plunger is pressed into the magnet.Now advance the plunger rod slightly by turning in the adjusting screw and press themagnet plunger into the magnet again. Keep advancing the plunger rod slightly… … \S»/TT LEVE&SHirT LATCH Fig. 30 11. Letters Magnet Plunger Travel. The travel of the letters magnet plunger shouldbe sufficient to disengage the shift latch from the shift lever and release the typewheelfrom the shifted position (Fig. 30). The method of making the adjustment is similarto the…
