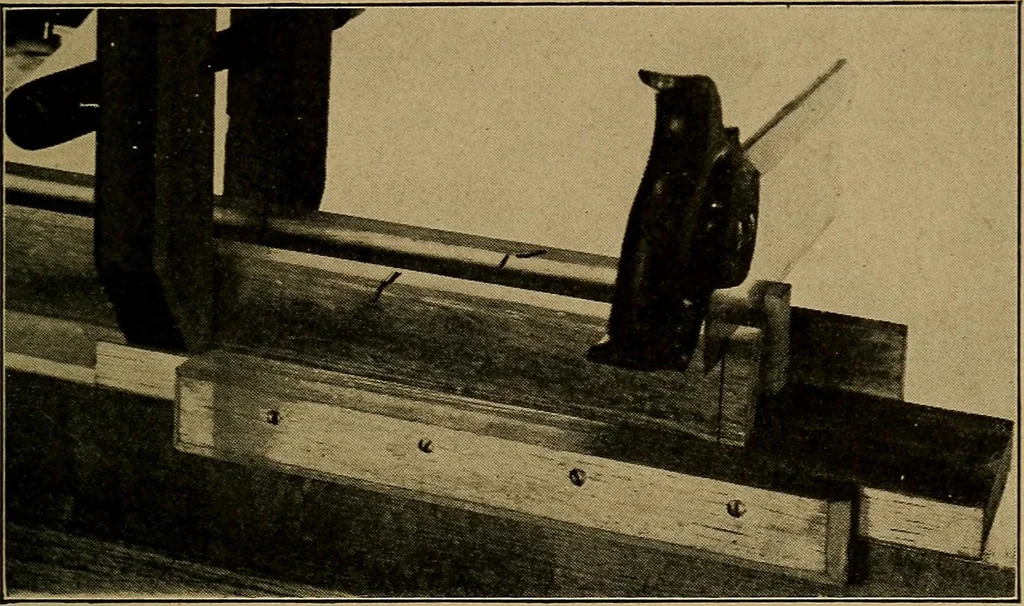

ngles thebetter cylinder you will make and the quicker you willcomplete it. After you have made as many regular sides as you can,look for any irregularities and plane them down. This part ofthe work should be well done, for no amount of sandpaperingwill take the place of careful planing. After the… … Fig. 309—Sawing End of Cylinder between two pieces as shown in Fig. 309 and draw lines onthe pieces to saw by. Saw very slowly to avoid slivering. LESSON 69 TOWEL ROLLER Fig. 310 illustrates the towel roller and Fig. 311 is a mechani-cal drawing of it. The size and shape may be modified to suit.
