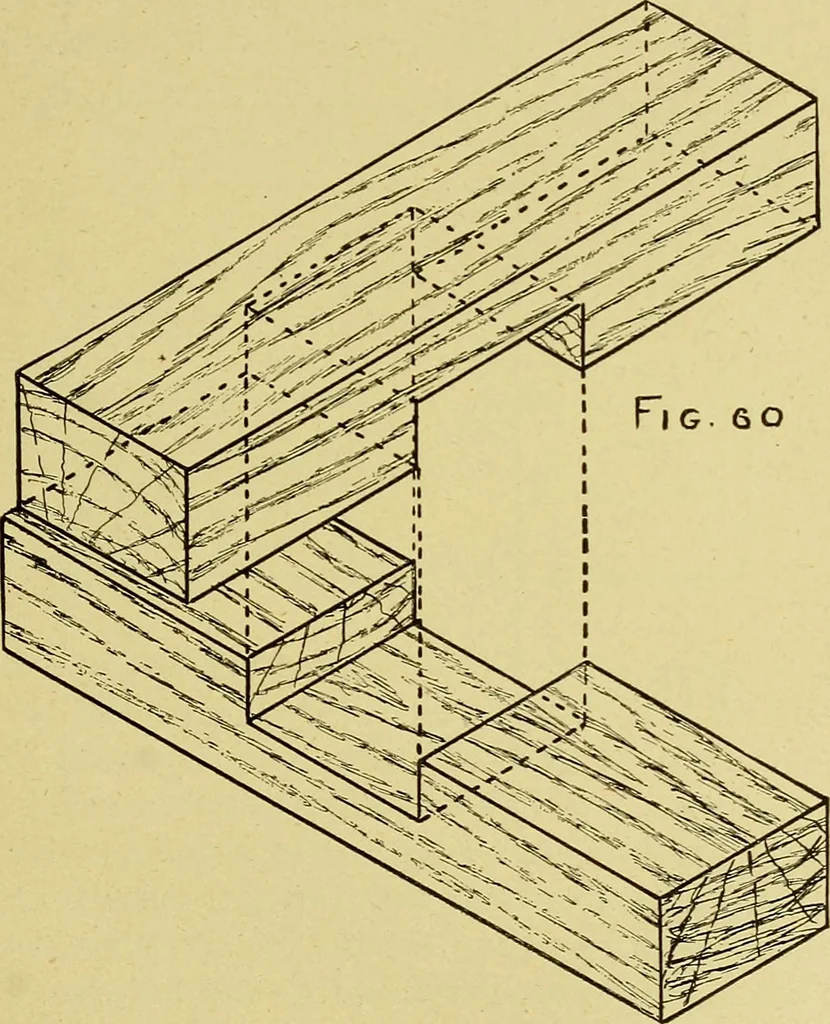

EXERCISE NUMBER 2. HALVED JOINT. When two pieces of timber of equal thickness crosseach other and the joint is to be flush, i. e., the pieceswhen joined are to form a flat surface, they are halved … together; or, to put it in another way, a piece is takenout of each half its thickness and as broad as the piece 48 ELEMENTARY COURSE IN WOODWORK. which is to cross it, thus allowing the one to drop intothe other, as shown in Fig. 60. The working drawingis shown in Fig. 61. To make this piece of…
