Elementary course in woodwork ; designed for use in high and technical schools, with one hundred and thirty-four illustrations, by George Alexander Ross (1901)
Ross, George Alexander · Chicago, New York, A. Flanagan Company · leaf 58

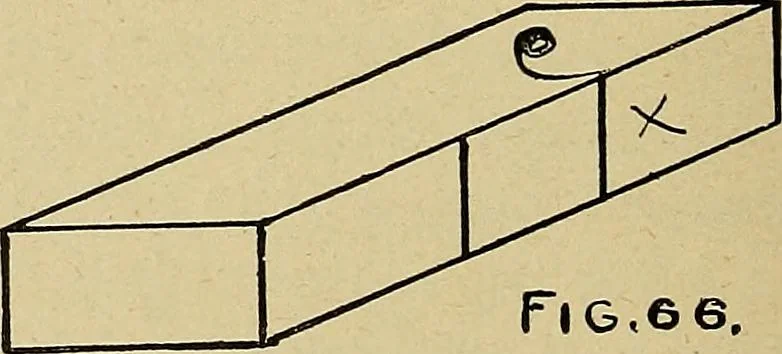

d (6— lj-=4j0 f=|xj=f or 2J;locate the first point on the face edge; then measurefrom this point the width of the tenon piece, which is1-j. Through the points just found draw the linessquare to the face side. Place the square against theface edge and mark (on theopposite edge on the corner,a small… … ELEMENTARY COURSE IN WOODWORK. 55 the face and back, using the square and the knife inmarking. Prepare the shoulder lines for the back saw,as shown in Fig. 53, taking care that the notch is cuton the right side of the line. Take the gaugeand set it to thedistance from the Ftoev. face side to the…
