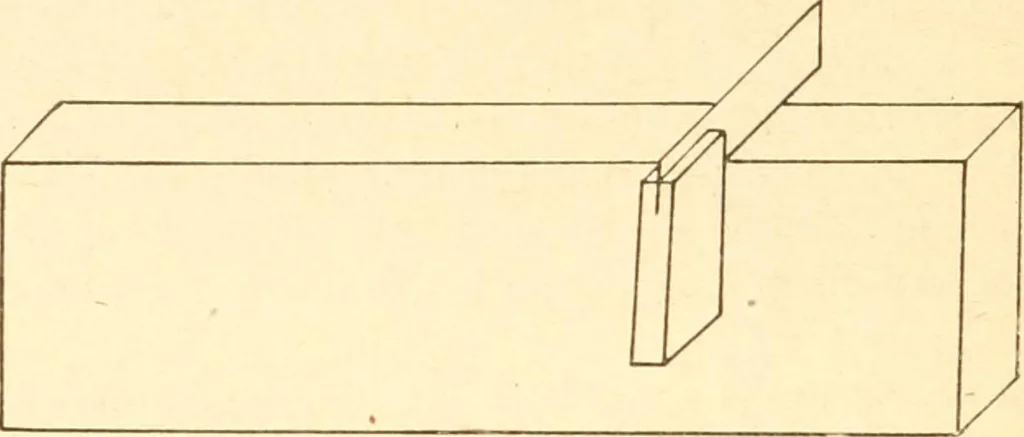

put on the portion oftlie square as shown in the diagram, and with the pressure inthis direction, move the square slowly downward until theblade comes in contact with the work at some point, whichwill determine the exact condition of the edge. The ordin-ary way of applying the try square to the… … Fig. 13. The bevel square is a tool used for the purpose of guidingthe marker in making lines at an angle or obliquely acrossthe work. The blade, being adjustable, may be set at any anglefrom one to ninety degrees. The bevel square is shown inposition on the work in Fig. 14.
