Elementary course in woodwork ; designed for use in high and technical schools, with one hundred and thirty-four illustrations, by George Alexander Ross (1901)
Ross, George Alexander · Chicago, New York, A. Flanagan Company · leaf 62

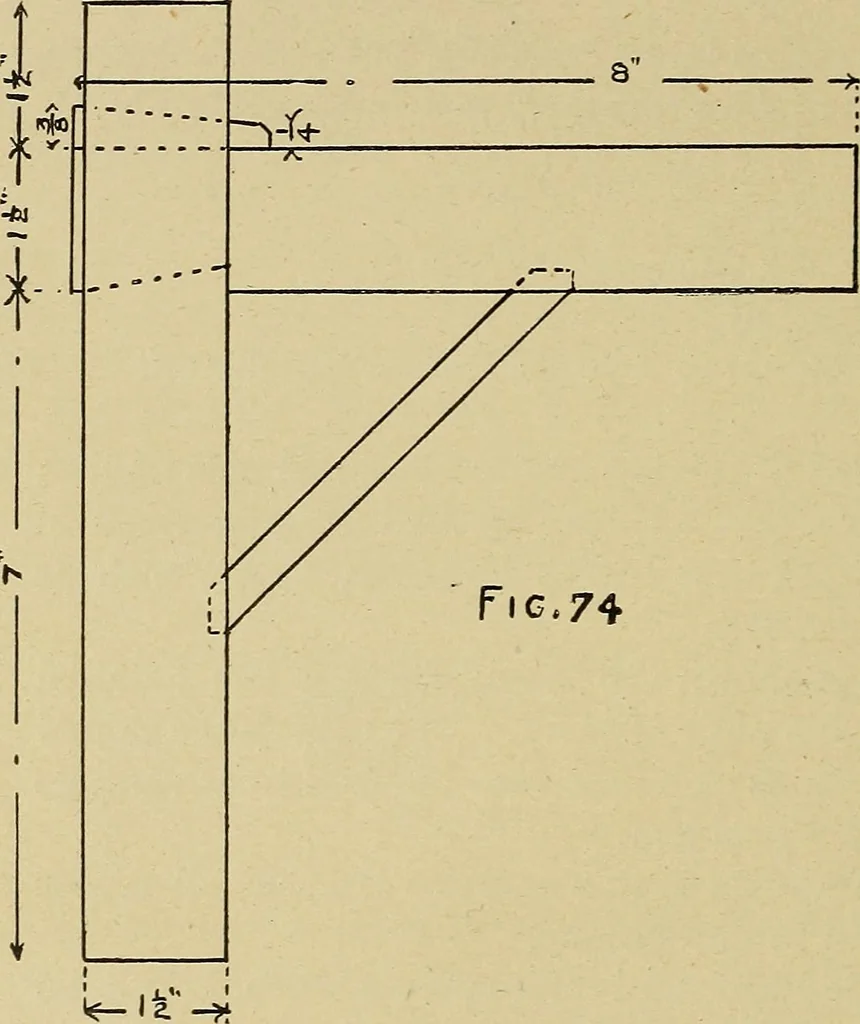

ed besquare to each other. That the brace fit snugly, and form two angles of45 degrees back at its junction with the upright andcross piece. That all joints fit closely, and the whole work besmoothed off and made true. 58 ELEMENTARY COURSE IN WOODWORK. The method of laying out the keyed joint is… … JZL 81 8S k|-> >4..s k-r4-J inches; draw the lines square to the face side, deductthe amount of splay or bevel that is given to the mor-tise and tenon from the lower end of the mortise, andadd to the upper end the width of the key; draw thelines, and mark them in some manner so that they will…
Woodwork (Manual training)
