Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 275

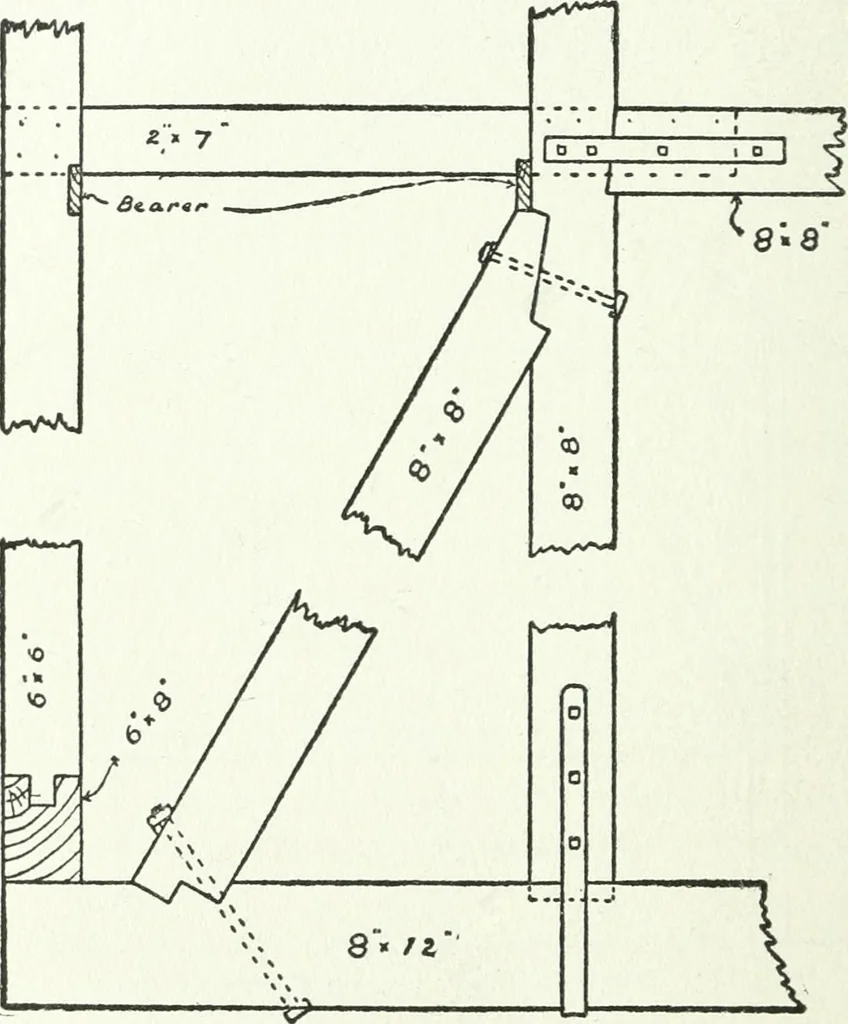

Fig. 121. Truss for Bam without Basement Posts. size of barn desired. The height of the purlinplates is also variable. This kind of barn is built to best advantageon a gentle hillside, thus allowing an easy drive-way to the main floor of the bam, and givingopportunity for a basement underneath to… … Fig. 122. Details of Heavy Framing. that shown in the drawing, this method has beenfound to answer every purpose; and the addedadvantages of other methods of framing seldomwarrant the difference in cost. FRAMING 245 At first glance at the construction shown inFig. 120, one would think such a frame…
