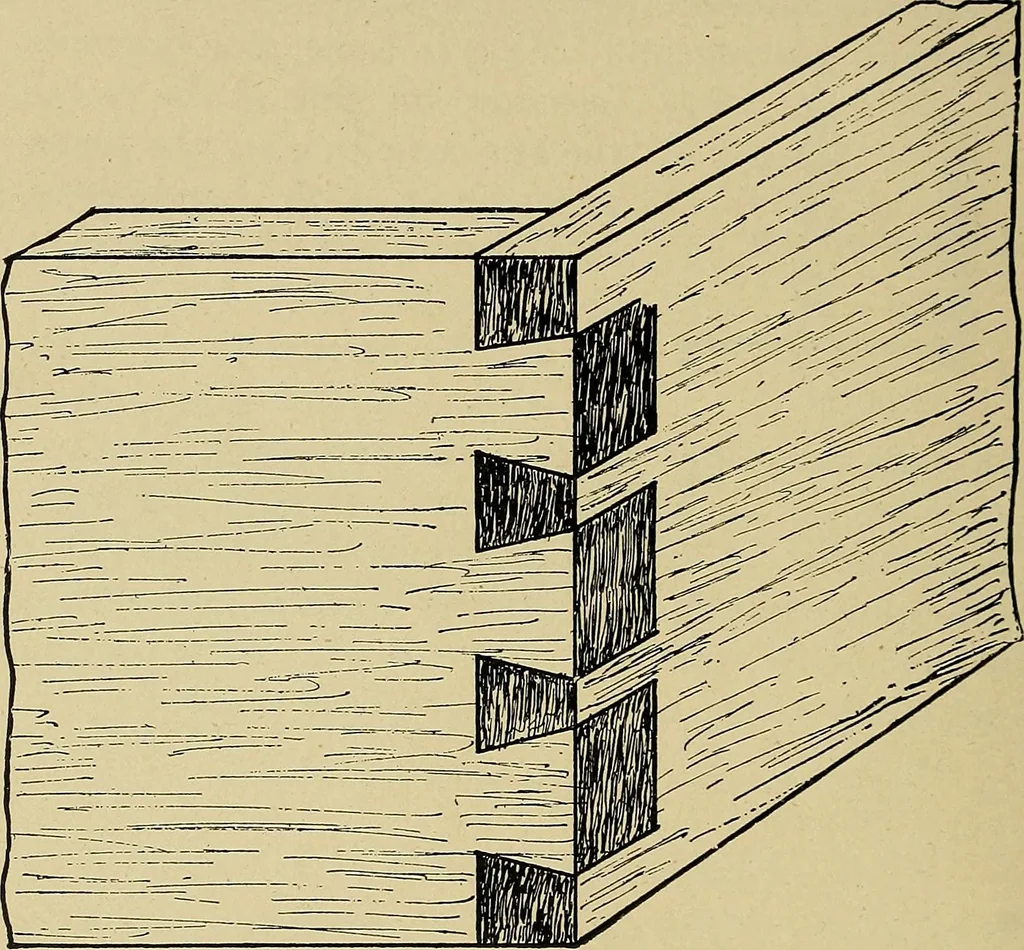

. One of the most important methods employed bythe joiner is that termed dovetailing, which is of threekinds, namely, common, lap, and miter. Commondovetailing (see Fig. 97) shows the form of the pins orprojecting parts, as well as the excavations made toreceive them. Lap dovetailing is similar to… … F« G, 97. together; only the ledge is visible on the return side.Miter dovetailing (sometimes also called secret dove-tailing) conceals the dovetails, and shows only themiter at the edges. The manner in which this joint ELEMENTARY COURSE IN WOODWORK. 73 is made will be understood from Fig. 99, in…
