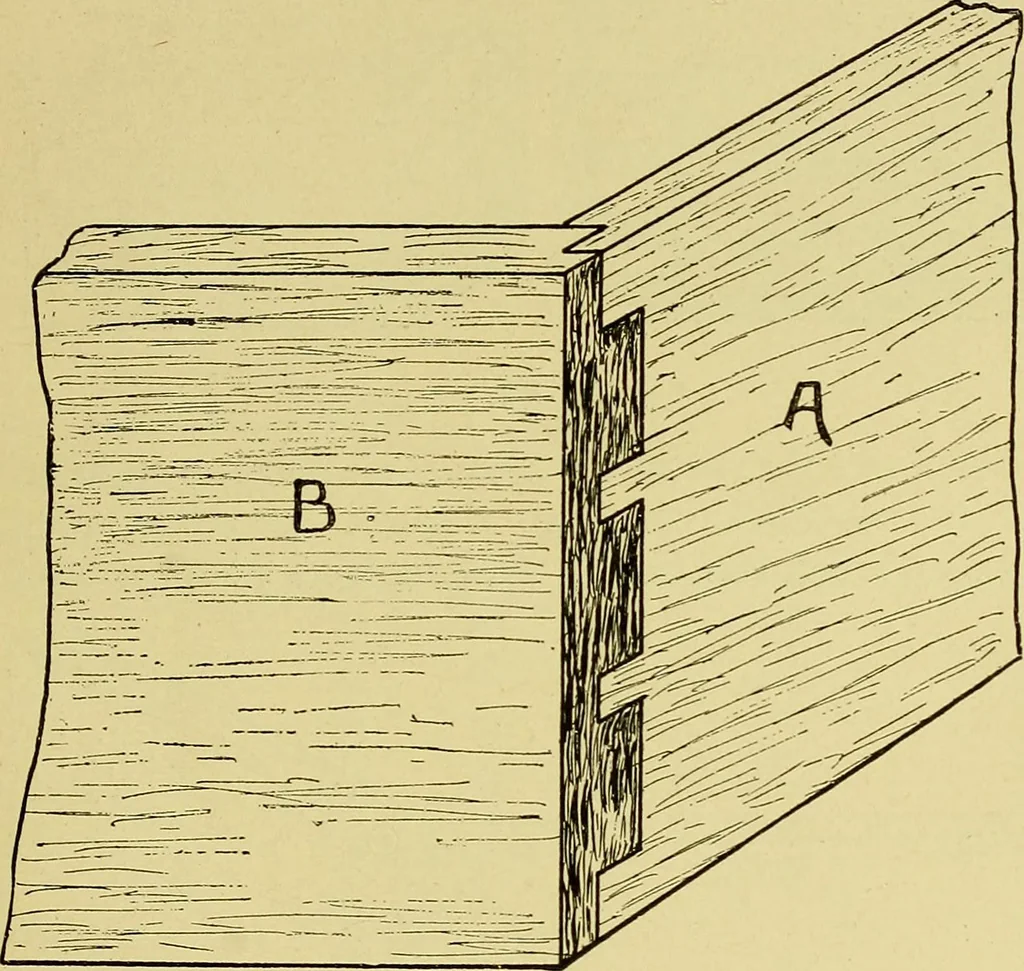

F« G, 97. together; only the ledge is visible on the return side.Miter dovetailing (sometimes also called secret dove-tailing) conceals the dovetails, and shows only themiter at the edges. The manner in which this joint ELEMENTARY COURSE IN WOODWORK. 73 is made will be understood from Fig. 99, in… … Fig. as the sides are joined. Concealed dovetailing is par-ticularly useful where the faces of the boards are in-tended to form a salient angle; that is, one which is onthe outside of any piece of work; but when the faces 74 ELEMENTARY COURSE IN WOODWORK. form a re-entrant angle, that is, a joint…
