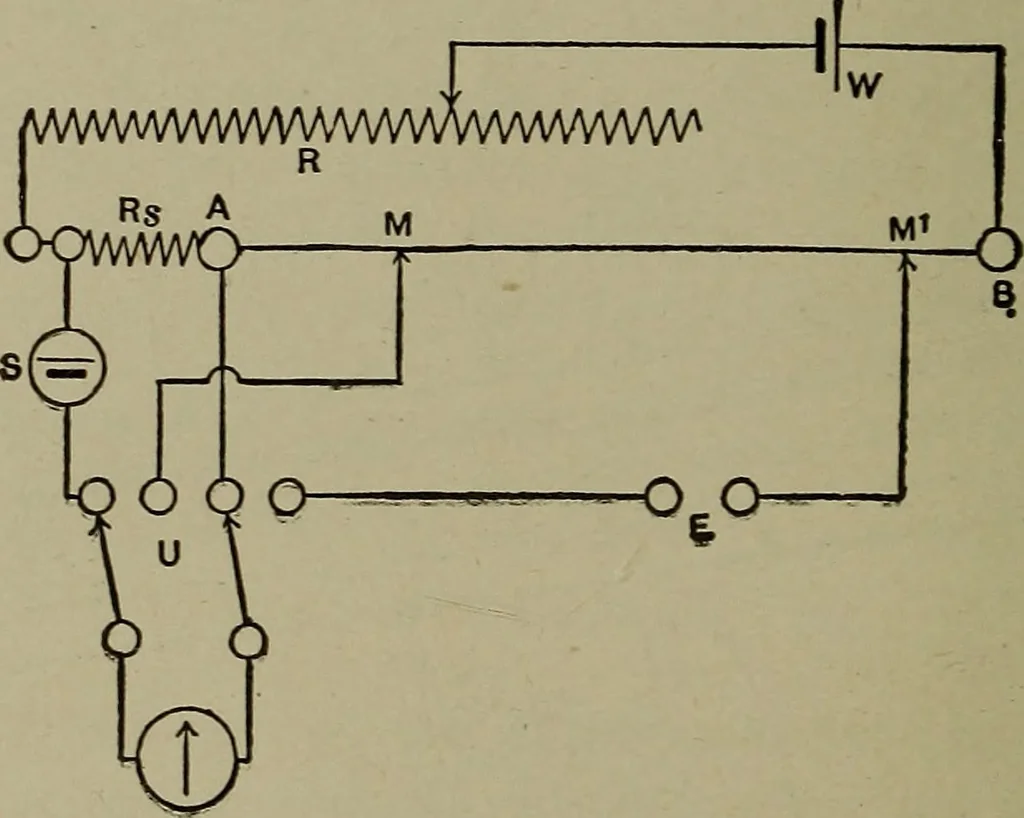

Fig. 157. Principle of the Potentiometer. … Fig. 158. Potentiometer Connections. ometer to the wire. This point represents the top orbottom of the diamond. The position of the point readoff on the scale gives the ratio of resistance of the twosides represented by the stretched wire. By using one ELECTRICAL MEASURING INSTRUMENTS 333 or the…
