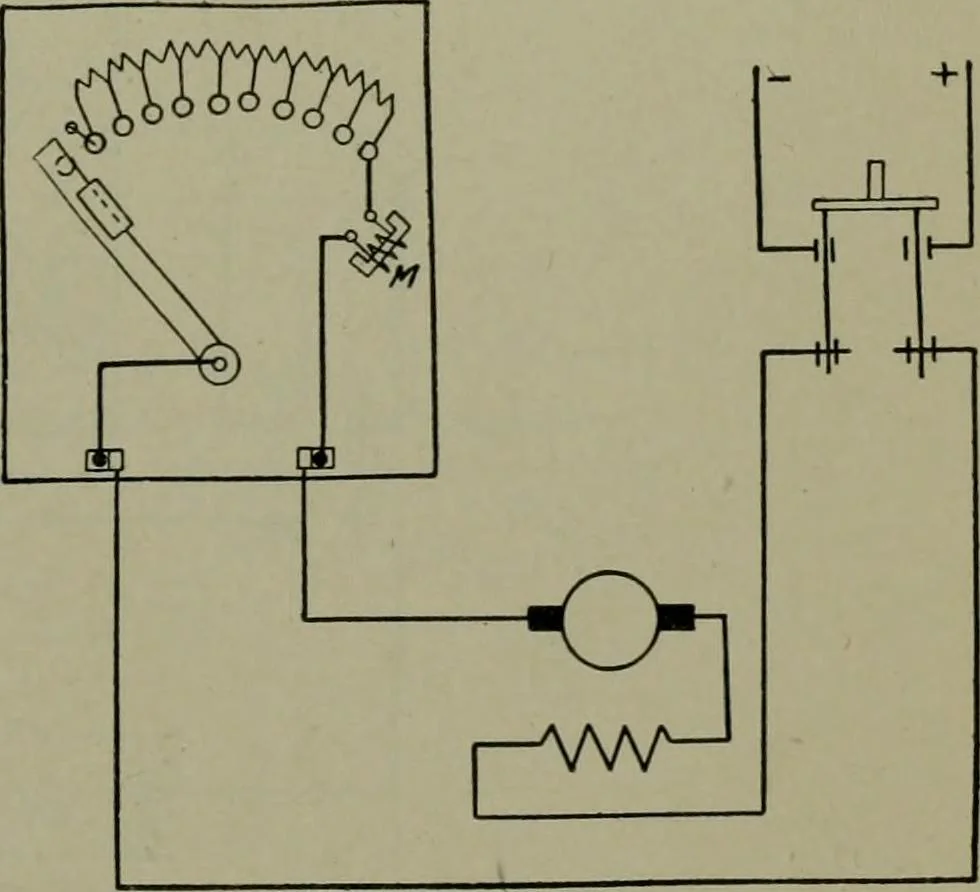

Fig. 232.—Water rheostat. For calculation of dimensions, etc., see Standard Handbook for Electrical Engineers. 500 yolts\ Resistance Cric/6Water Rheostat -E3- … FiG. 233. Fig. 234. Fig. 233.—Home-made rheostat of large current-carrying capacity for reducing 500-voltcircuit to 110 volts. The resister grids are of the type used on railway cars. The voltage canbe varied by the water rheostat. Fig. 234.—Connections for typical series-motor starter, with no…
