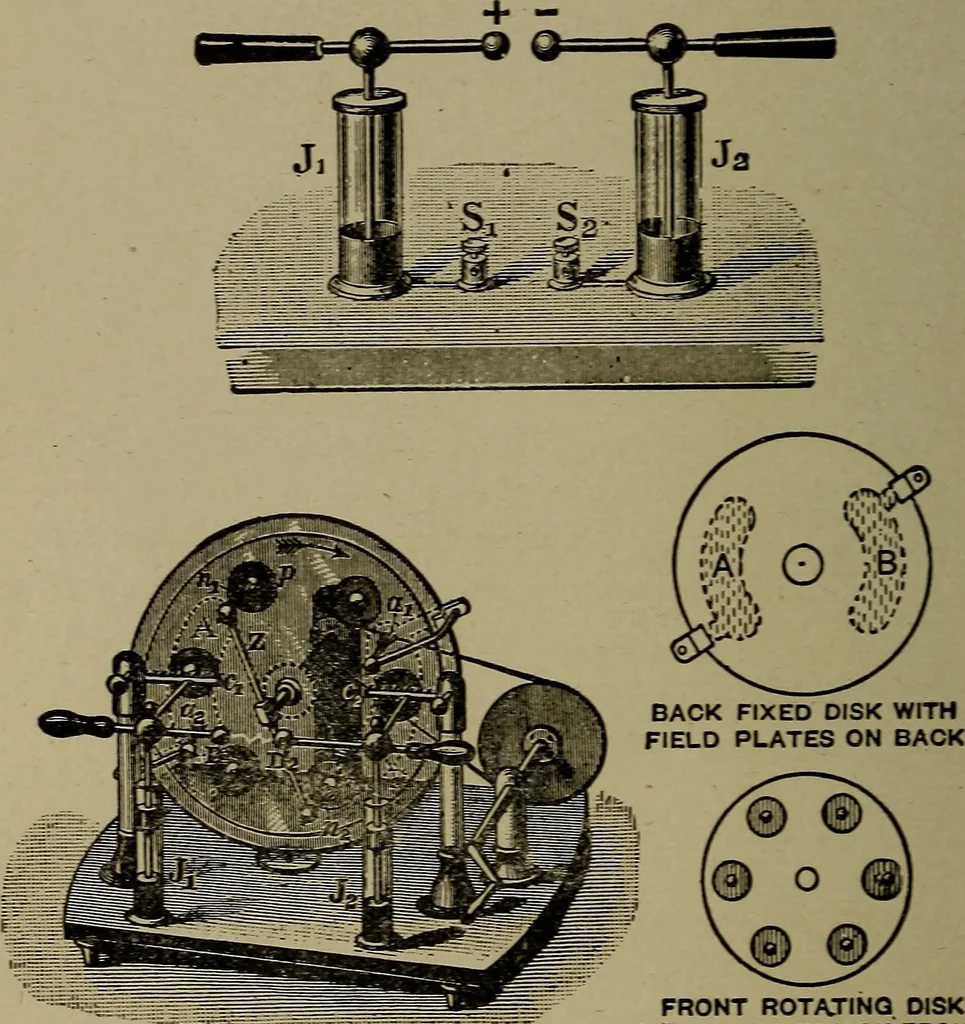

y brass wire, and are mountedon the ends of a diagonal conductor Z. The appropriat-ing brushes alf a2 are also of thin brass wire, and arefastened to clamps projecting from the edge of the fixeddisk, so that they communicate metallically with the two 68 ELEMENTARY ELECTRICITY field-plates. The… … FRONT ROTATING DISKWITH CARRIERS ON FRONT. Fig. 22. A Toepler Electrical Machine. the two small Leyden jars Jr J2, the function of whichis to accumulate the charges before any discharge takesplace. These jars are separately depicted in Fig. 22.Without them, the discharges between the knobs take…
