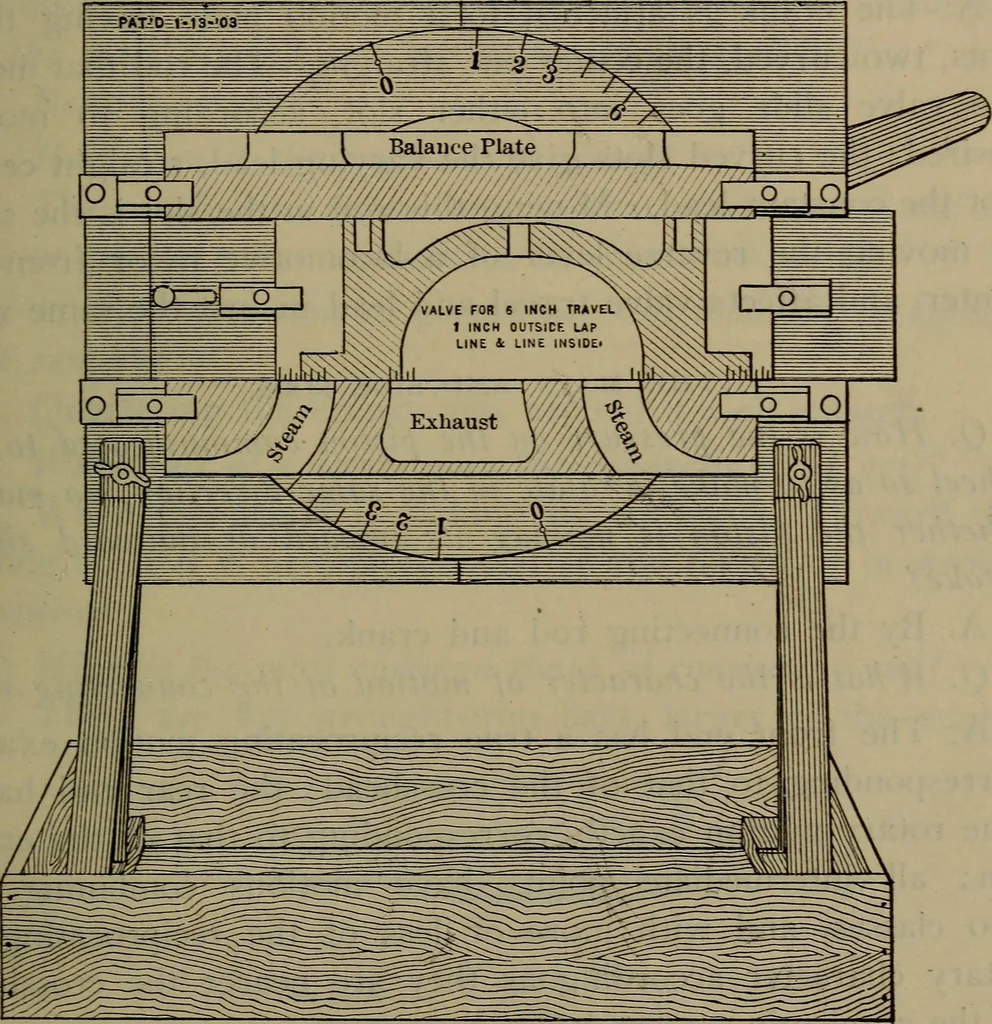

e cut-off, so theengine must work down in the corner both ways. VALVE-MOTION MODELS. Q. Describe the Colvin valve-motion exhibitor? A. This is based on the fact that a link gives the samemotion as an eccentric moved across the shaft to secure avarying valve travel. It consists of a steel frame n by… … Fig. 176. Colvin Valve Motion Exhibitor. started and piston has moved nearly an inch. Any type ofvalve, seat, and balance plate can be used and the exact resultsnoted. The whole model packs into the box, which makesthe stand for it. Fig. 176. 0. What will it show? A. The movement of anv valve, full…
