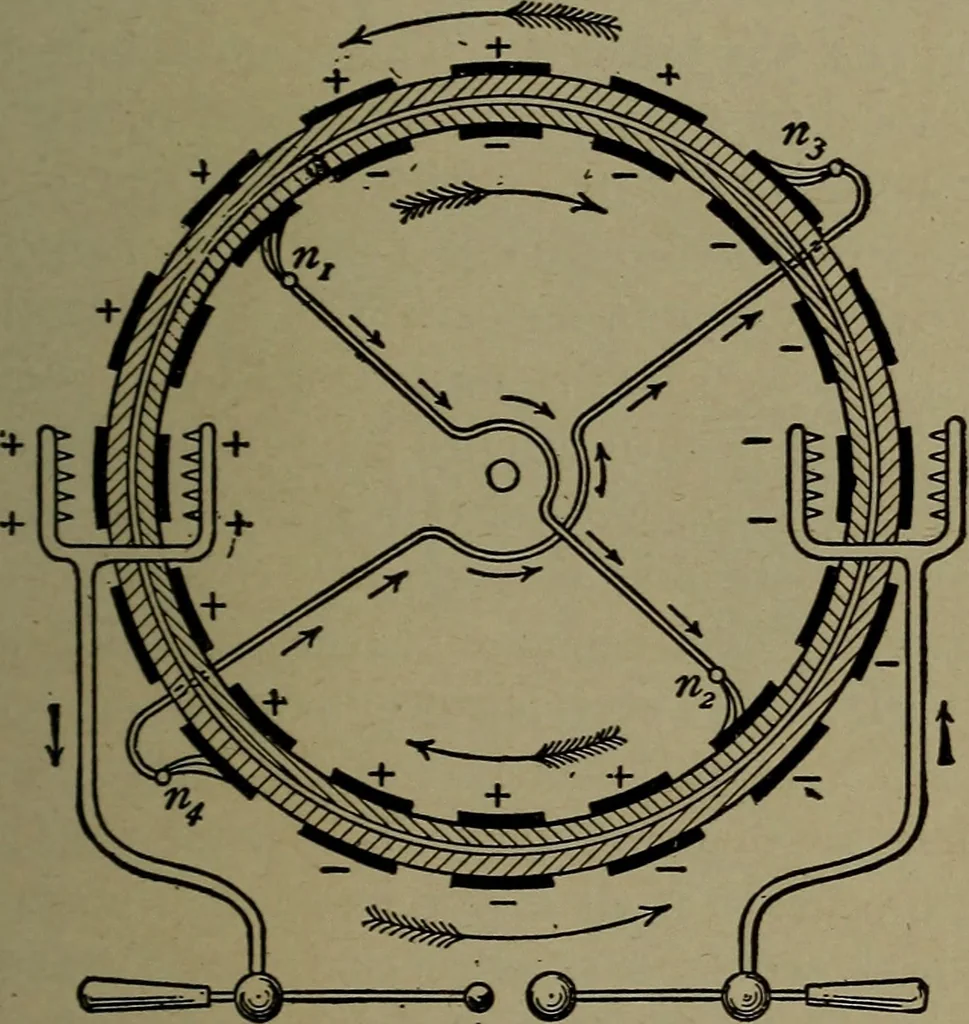

ing apparatus. This consists of two pairs of in-sulated combs, each pair having its spikes turned inwards ELECTRICAL MACHINES W toward the revolving disks, but not touching them; onepair being on the right, the other on the left, mountedeach on an insulating pillar of ebonite. These collectorsare… … Fig. 24. The Wimshurst Machine laid out in diagrammatic way, toshow principle of its operation. The processes that occur in this machine are best ex-plained by aid of a diagram (Fig. 24), in which, forgreater clearness, the two rotating plates are representedas though they were two cylinders of…
