Electricity and magnetism : an elementary text-book, theoretical and practical (1920)
Glazebrook, Richard, Sir, 1854-1935 · Cambridge : The University press · leaf 90

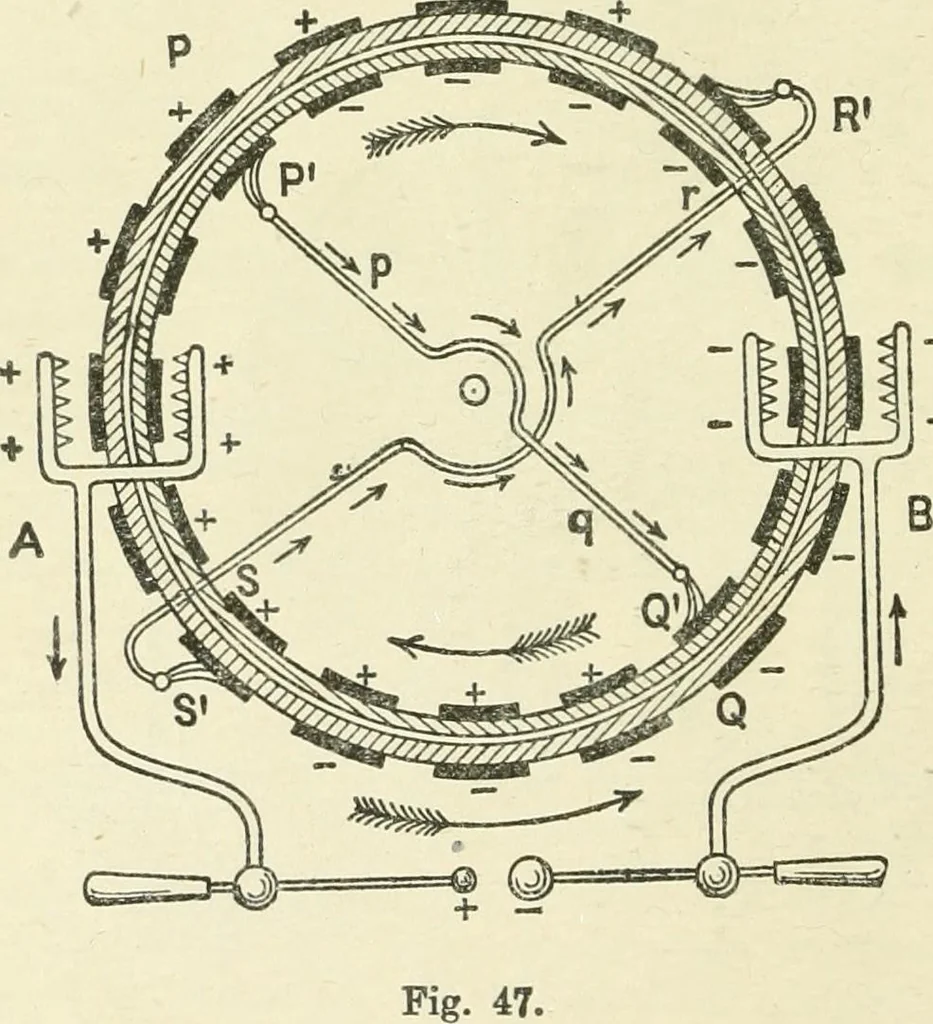

rizontal diameter are twoU-shaped conductors furnished with points on the sidestowards the plates; each of these is insulated and connectedwith a Leyden jar or other condenser. (See Section 44.) Discharging rods fitted with insulated handles are attachedto the conductors. Two diametral conductors… … The action of the machine is best explained by the diagramFig. 47, in which, following a suggestion due to Prof. S. P.Thompson, the rotating plates are represented as though theywere two cylinders of glass rotating in opposite directions.The fcin-foil sectors are shewn as dark lines on the surface…
Electricity · Magnetism
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
