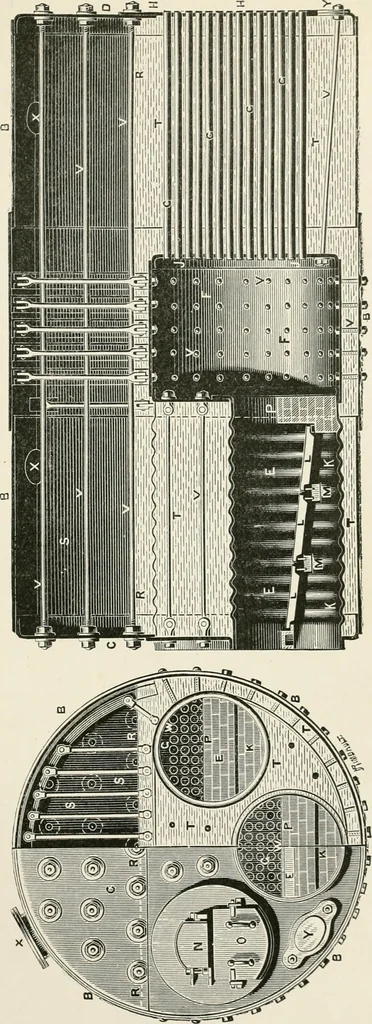

e boiler. The top of the combustion chamber of the boiler shown issupported by stays fastened to T steels at the top of the boiler.With the above exceptions the description of parts of the return tube boiler will serve for this type also. The lettersrefer to corresponding parts in the sketches of… … 151 lesson xiv BOILERS 153 K, Ash -pit. S, Steam space. L, Furnace bars. T, Water space. M, Bearing bars. V, Stays. N, Furnace door. \Y, »S7a# /w&es.O, Ash pit door or draught plate. X, Manholes. P, Bridge. Y, Mudlwles.R, Water line. The do able-ended boiler consists practically of two…
