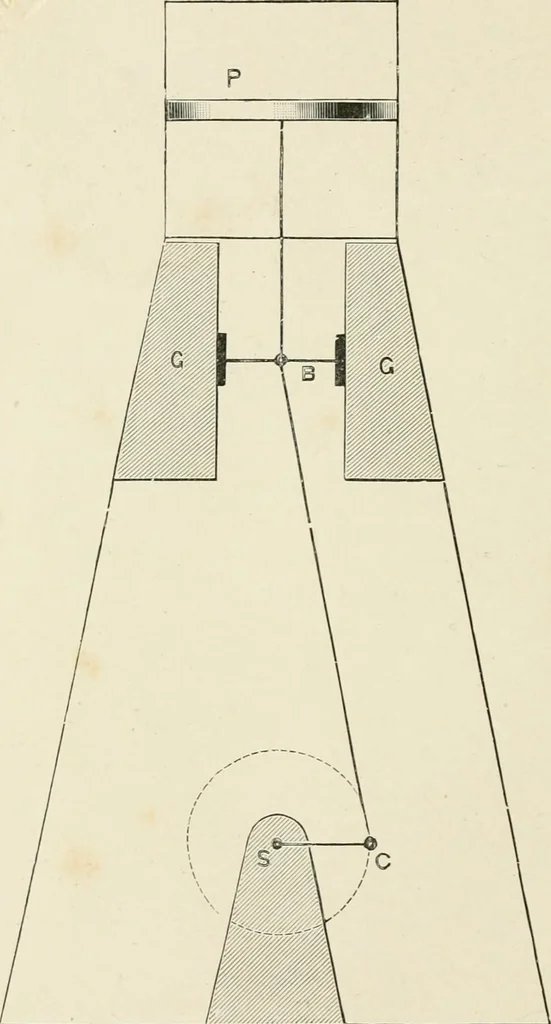

iston rod to the crank, p. 73, is shown in Fig. 35. The pin B,called the crosshead jpin, which is firmly secured in the top endof the connecting rod A, works between brasses at the bottomend of the piston rod, which are capable of adjustment. Thebottom end C of the connecting rod is fitted with… … Fig. 36.—Outline Sketch illustrating Cox version of Motion bymeans of Connecting Rod and Crank. LESSON VII CONVERSION OF MOTION Explanation of method of converting reciprocating into rotatorymotion, illustrated by crank and connecting rod of steam engine,with outline sketch. Meaning of dead points:…
