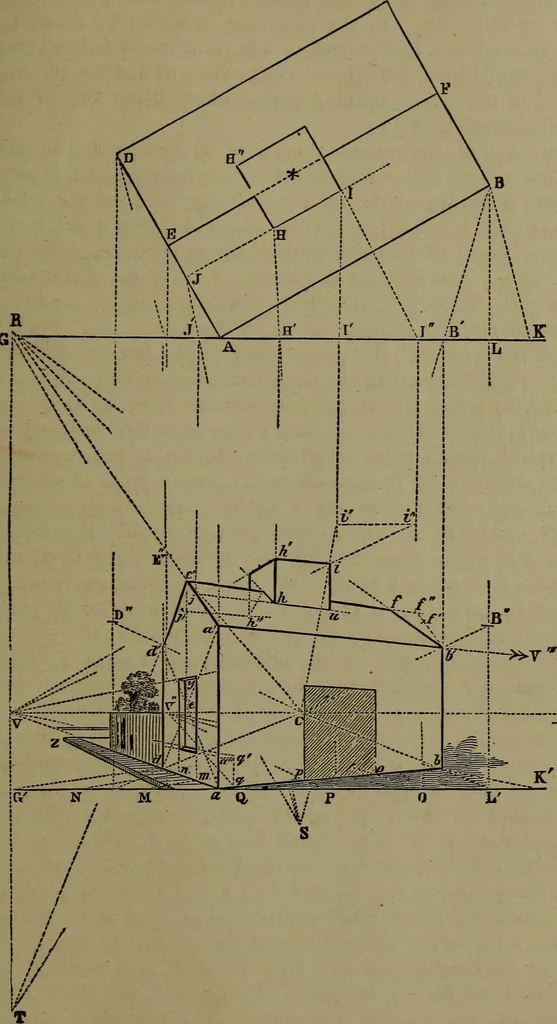

re, and S thestation point. The perpendicular to the ground line, and contain-ing S and C passes through * the centre of the plan (122 i). The edge at A, being in the perspective plane, is its own perspec-tive, and appears in its real height at aa. The visual ray BS—•LC pierces the perspective… … Fig. 58. 206 LINEAR PERSPECTIVE. The vanishing point of all lines parallel to AB, can now be foundin either of two ways. In the usual way, it would be found bydrawing through S a line parallel to AB, till it meets GK, whencedrop a perpendicular to W (108). Or, produce ah and ab till theymeet W, in…
