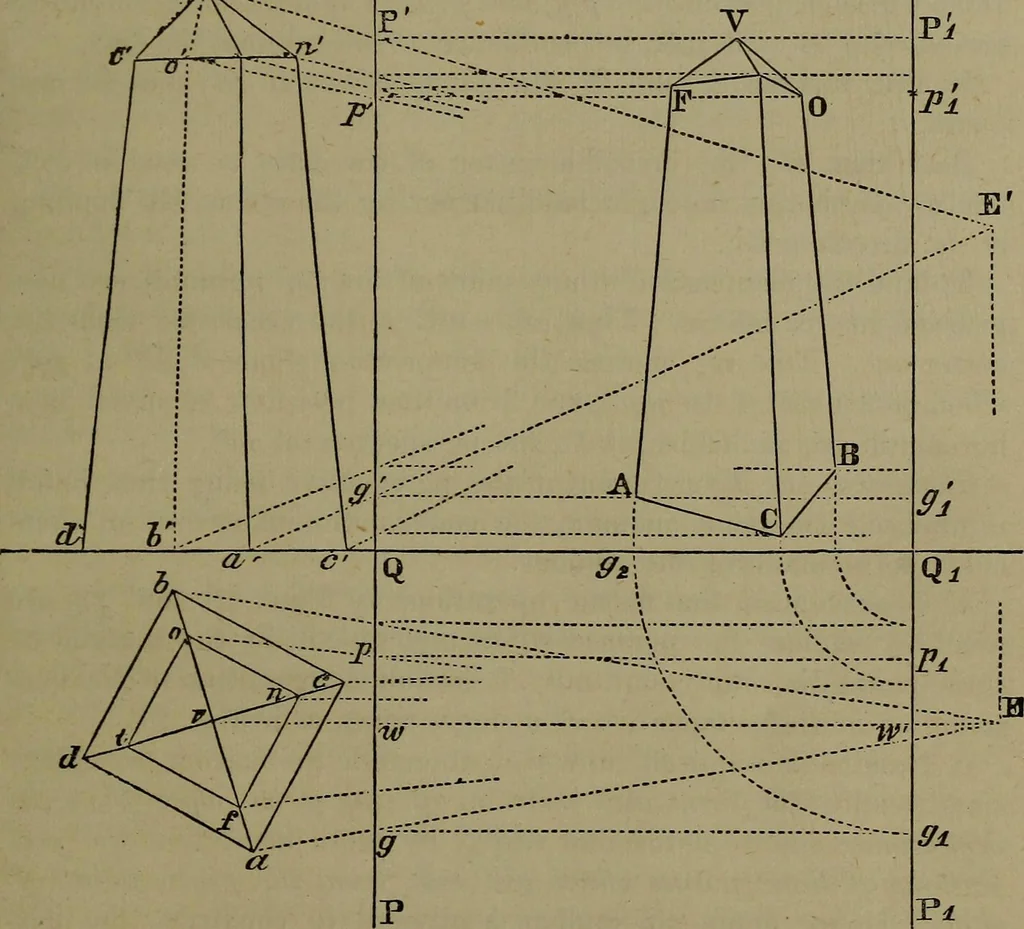

ect drawn. This will be obvious on inspection inthe succeeiing examples, wherever three planes shall be used. b. Either of the methods of disposing of the pei-spective plane,explained in this chapter, will be used at pleasure in the solutionswhich follow. The student is advised to solve the… … Fia. 22. Example 4.—To find the Perspective of an Obelisk, com-posed of a frustum of a lon^ pyramid, cappea oy a snorxpyramid. 42 LINEAR PERSPECTIVE. Let the square acbd—cd\ Fig. 22, be the horizontal and verti-cal projections of the base of the obelisk ; and v-jnot—v-nf theprojections of the cap…
